  • Switching Power Transformer

Switching Power Transformer

Switching Power Transformer



Product Details

Quick Details

Description

Switching Power Transformer

Title:

PQ-20/20 PTH

Content :

Core shape: PQ-20/20 series

*Features:

*Low-loss/ High saturation magnetic flux density ferrite

Optimized magnetic shield for low interference

*High performance

*High-power output

*Compatible with multiple output switch-mode power supplies

 *Safety standards approved

*RoHS Compliance

Product details

Electronical characteristics

 Core shape

Bobbin type

No. of terminals

  Dimensions mm

Center leg area

Ae mm2

Maximum output

V A

Max

Max

 Max

±0.3

±0.5

±0.5

±0.1

Min

A

B

C

D

E

F

G

H

PQ20/20

Vertical

148+6

24

24

22

2.5/3.8

5.1

20.3

0.6

3.0

61.4

92

  Note: The design bases on: 1.Forward model 2.PC40series ferrite 3.Switching frequency: 100 KHz





Company Profile

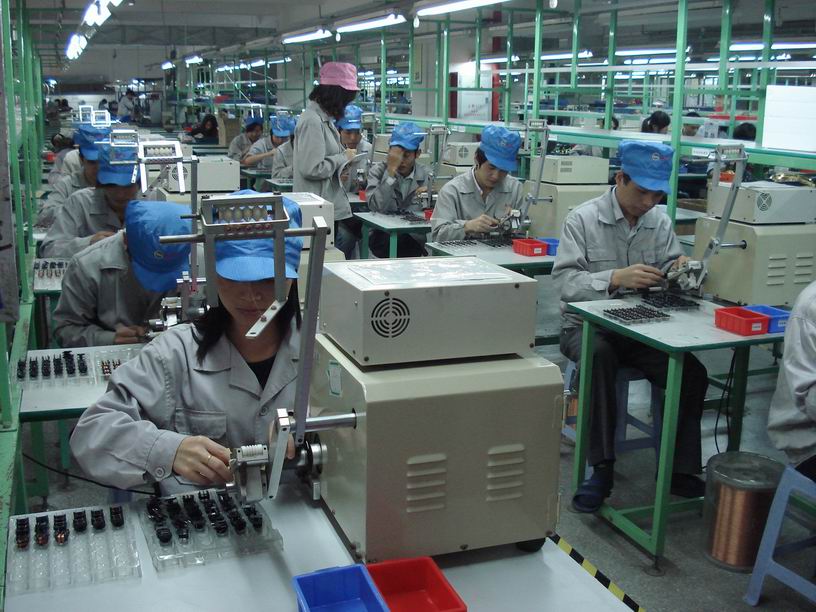

Established in 1994, Golden Bamboo Electronics (Zhuhai) Co.,Ltd focus on designing, manufacturing and exporting SMD, high-frequency transformers, ADSL and switch-power transformers, as well as power inductors, choke and hollow coils. Our products are widely used in many fields, such as consumer electronics, automotive, lighting and telecommunications. And our items are well-received by clients in Europe, the US and Southeast Asia. In 2010, the company injected more resources in development of new products, among which, special purpose inductors for DC-motors were successfully applied to the Antilock Brake System and various DC-motors. Utilizing state-of-the-art fully automated eight-spindle winding machines from Taiwan, we can meet your high-precision requirements easily. Volume orders are expedited at our ISO 9001:2008-certificated factory, which equipped with 15 production lines and operated by 200 skillful workers. E-mail: lucy@goldcoil.com http:// www.goldcoil.com
