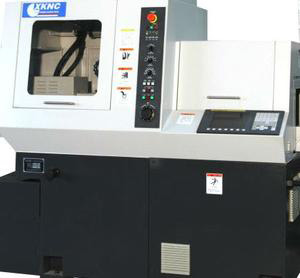

  • Swiss Type High Precision CNC Lathe (S12F/16F-4S/4SD)

Swiss Type High Precision CNC Lathe (S12F/16F-4S/4SD)

deep-bore part machining Swiss Type CNC Lathe 4 axis Please contact:q56982365@126.com

Product Details

Quick Details

Description

This is a kind of general-purpose,high-precision and high-speed sliding headstock CNC lathe. Provision of total-travel synchronous rotary guide bush, high-precision electric spindle and large steady bed and base ensuese the high rigidity and precision of the machines. User –friendly interface is more conductive to the user’s use and operation. Multiple options of function including main shaft, contershaft, CS axel control, driving tool, ect could achieve one-step machining without need for improving productiving. They are widely used in machining of the long-axis parts of electronics/electrical appliances, communication equipment, fax machines photocopiers, automobiles,ect.





ITEMS

S12(16)F-4S

S12(16)F-4SD

Main

spindle

Travel



Rotary guide bushing

140 mm

Static guide bushing

190 mm

Max. RPM

12000rpm/min

Max. machining diameter

12mm(16mm)

12mm(16mm)

Sub-spindle

Travel

140 mm

Max. RPM

8000rpm/min

Max. machining diameter

12mm(16mm)

12mm(16mm)

Number of tools

6

Number of front work tools

5 (no power tool)

3 (power tool)

Radial power tool (special)



3

Max. drilling diameter

                              7mm

Max. tapping diameter

                              M6

Power source

8kVA

Packing dimensions(LXWXH)

1701×1133×1620mm

Total weight

1900kg

System

FANUC Oi TD

Language

English, Russian, Chinese, Japanese

Packing

Wooden case



Company Profile

our company is the first domestic precision numerical control machine tool manufacturer to bring in advanced foreign technology and manufacturing experience; it is also a Sino-Japanese joint venture with national innovative and high technology accreditation.Xi'an Kitamura is running the famous Brand XKNC in China.
Now it is also the most important partner of the famous Swiss brand TORNOS in China, and running the XKNC-TORNOS joint-venture to provide CNC lathe.
Primarily engaging in the production of small precision numeric control machine tool, Xi'an Kitamura integrates processing, production, sales, technical training and service as a one-stop shop. Its products are extensively applied in communication, refrigeration, optical instrument, household appliances, medicine, automobile, motorbike, electronics, special electrical machine, and timepiece industry.
High performance detection means, advanced measuring instruments, and strict control on products, parts and components guarantee the high quality of Kitamura machine tool.
Company product line covers a total of 6 main series in more than 60 specifications, such as Xi'an Kitamura series gang tool CNC lathe, TX series rotary turret CNC lathe, S series Longitudinal Cutting CNC Lathe, ZJ divided drilling and milling machine series, vertical machining center jointly produced with Kira company, and automatic cutting machine in cooperation with Akebono Kikai Co., Ltd.
The manufacturing process and technique of Xi'an Kitamura possesses an obvious brand advantage and tops in market share in the industry
By engaging and converting the most advanced technology, philosophy and process of precision machine tool in the world, Xi'an Kitamura stands for a domestic replacement for imported small-sized high-end machine tool and promoting a stronger equipment manufacturing industry of China.
