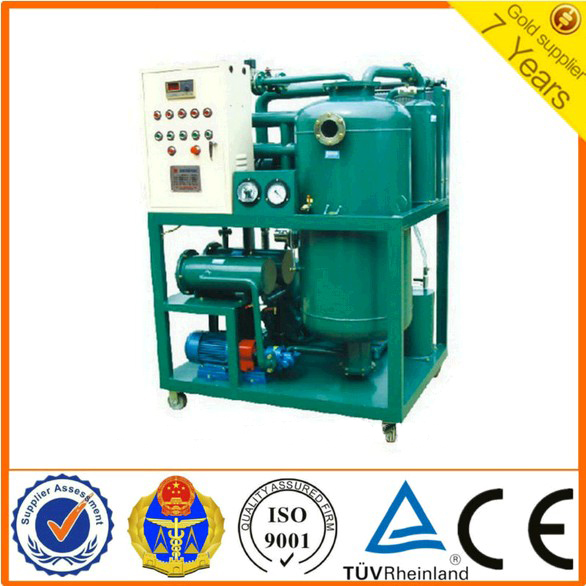

• Supply ZLA Series Vacuum Oil Purifier

Supply ZLA Series Vacuum Oil Purifier

Supply ZLA Series Vacuum Oil Purifier 1)Double-stage, high vacuum and flow rate 2)Advanced dehydrating and degassing system 3)Precise fine multi-stage filtration

Product Details

Quick Details Parameter

Condition: : New
Flow: : 50L/MIN
Working Pressure: : Less than 0.5MPA
Place of Origin: : Chongqing, China
Brand Name: : WANMEI
Model Number: : ZLA-50
Usage: : Insulation Oil
Voltage: : 380V
Power(W): : 46000
Dimension(L*W*H): : 150*120*165CM
Weight: : 800KGS
Certification: : ISO9001
After-sales Service Provided: : Engineers available to service machinery overseas
Certificate: : TUV Rheinland
Brand: : OEM available
Warranty: : One year
Color: : Optional

Description


Supply ZLA Series Vacuum Oil Purifier

ZLA series vacuum oil purifier

General Description:

ZLA series high-efficiency double-stage vacuum oil purifier is a typical product, developed and produced by Wanmei company as a special equipment for dehydration, degassing, purification process of various kinds of insulating oils in electrical transformers and circuit breakers etc. It is designed on vacuum drying principle, coalescence and separation technique, accurate fine filtration and other Wanmei patented technique.

Application scope: ZLA series is widely used in purification of various kinds of insulating oil, especially the fine purification treatment of high-grade new oil, imported oil and high-voltage transformer oil. It can be used for onsite operation in over110KV transformers, especially even in high-latitude areas. ZLA series also can be used as vacuum and drying equipment for a variety of electric facilities. And it is widely used for oil filling for transformers and circuit breakers under vacuum condition. It is suitable for high-efficiency purification process for other low-viscosity lubricating oils. It can be used on-line and onsite without interference of power supply and without human supervision.

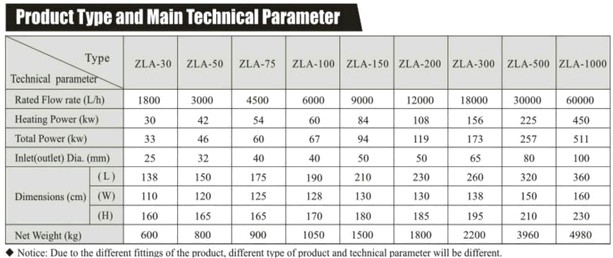

parameter


Supply ZLA Series Vacuum Oil Purifier

Supply ZLA Series Vacuum Oil Purifier


Characteristics:

1. Double-stage, high vacuum and high flow rate that helps remove water, air, gases, solid particulates and other impurities from oil quickly and efficiently so as to improve the breakdown voltage of oil and maintain its insulating property.
2. Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil, such as water, air and gases.
3.Precise fine multi-stage filtration helps remove mechanical impurities in oil; high-quality filter element is of corrosion proof, strong mechanical strength and wear resistance.
4. Safe and reliable heating system ensures quick heating and even, constant temperature.
5. Sensitive automatic pressure protection device and float valve and infrared oil level control system make the operation even easy, simple and safe.
6. Strong air cooling system quickly lowers temperature of air from the vacuum pump.
7. High quality composition. Major parts of the equipment, like vacuum and roots pump, are of first quality in the world, imported from Leybold Germany, Kinney America and Schneider France.
8. Multi function. It possesses the function of vacuuming electrical equipment and oil filling under vacuum condition. It can be used to treat low-viscosity lubricating oils. It is more efficient than other single-stage vacuum oil purifier.

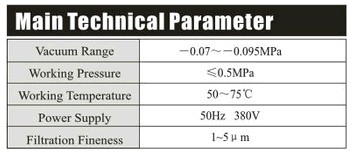

main parameter


Advanced separation technique adopted in our machine:

   * Magnetic separation technique      to remove metallic particulates from oil
   * Coalescence separation technique    to remove free water from the oil
   * Vacuum distillation technique      to break emulsion and remove water and light hydro carbon material
   * Verification separation technique   to remove air and gases from oil
   * Pressure filtration technique       to remove solid particulates from oil
   * Liquid film fine filtration technique  to remove micro impurities from oil
   * Absorbing technique              to remove acid, alkali and colloidal materials


Principle & Diagram

The oil flows first through magnetic filter, heater, electromagnetic valve into the vacuum flash distillation columns for dehydration and degassing treatment, and efficiently remove free and dissolved water, dirt, air, gases and other contaminants from oil. The oil level is auto-controlled by float valve and infrared photoelectric controller in the columns. Then clean oil is led out by oil pump through 2nd filter and fine filter to the outlet. Air and gases are led out by vacuum pump and roots pump, cooled down by air cooling system, water and steam are led out from water drainage, and air to the atmosphere.

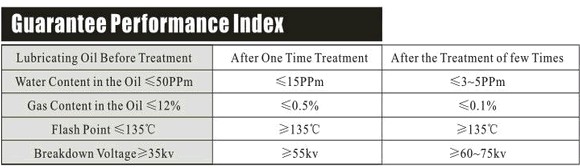

guarantee


Maintenance

A. check and adjust after oil purifier works for a period of time
    1. all the electric control apparatus
    2. temperature controller
    3. oil seals and motor couplings
    4. clean filter elements, check pumps and motors
    5. all the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas.

The result of purified oil and before.

difference


Our office and factory

Our office is Bright and spacious and the factory is clean and tidy, welcome to visit us and have business negotiation here!

Our certificates
We have got ISO9001 certificates, certified by  TUV Rheinland  and got 6 patents.


Our office and factory

Our office is Bright and spacious and the factory is clean and tidy, welcome to visit us and have business negotiation here!


Our Products

Wanmei has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, etc.


Our Clients

Wanmei has already cooperated with our domestic and overseas customers since 2001. More and more clients select our oil purifier as their products identification. Hope one day your logo can be put here!


Package & Delivery

Normally, we pack our machine with wooden cases. If you have special requirements, please mention that in advance. The main packing method:
Wooden case with waterproofing felt in side for airplane transportation & ocean transport.

deliver


Return & Feedback
We can provide the main component for each marking machine. You can send back the unqualified spare parts to maintenance or replacement the new spare parts for your marker.

After-sales Services

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.


Company Profile


wanmei logo

Chongqing Wanmei Electric & Machinery Co., Ltd. and Chongqing Wanmei Oil Purifier Research Institute are high-tech enterprises for research, development and production of oil purification equipment, automatic water purifier, gasifier and other electrical maintenance equipment. The company has unique capability in scientific research and equipment production, with the help of professional scientific experts, specialists and other technicians. Over 70% of the company's staff members are graduates from various colleges.

The company lays much emphasis on high technology research and applications to practical production, gaining a lot of patented technique certificates, know-how certificates, and ISO9001 international certificate. It is granted with independent right for international trade. "Wanmei" trademark has been registered in the People's Republic of China, and "Wanmei" brand has been widely acknowledged in the world market.

Wanmei has assigned to itself the great task of "saving natural resources and protecting biological environment". It has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, and so forth. Wanmei oil purifier is characteristic for its fine filtration, steady operation, energy saving, auto control and easy maintenance, which has won high praises from our customers all over the world.

Wanmei gives its guarantee to all customers both at home and abroad of reliable quality products, reasonable price and good service. We will serve our new and old customers with "Wanmei technology, Wanmei products, Wanmei quality, Wanmei service and Wanmei credit", and open up a brilliant new prospect together with all our customers.
