• Strong power 3d metal cnc machines FS-1325

Strong power 3d metal cnc machines FS-1325

1. Special for Mable, stone carving.
2.High precision.
3.DSP Controller
4. High speed.
5.3d metal cnc machines FS-1325

Product Details

Quick Details

Description

Product Description



Main Features of quarry stone cutting machine FS-1325



1.The heavy-duty machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress   relief, so the lathe body is stabilized and will not be deformed forever.

2. Y axis adopts high precision helical rack and pinion with high denticity

3. Well compatibility: CAD/CAM designing software, such as type3/castmate/Artcam/wentai, etc.

4. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.

5. Adopting advanced NC STUDIO system, DSP handel is optional.

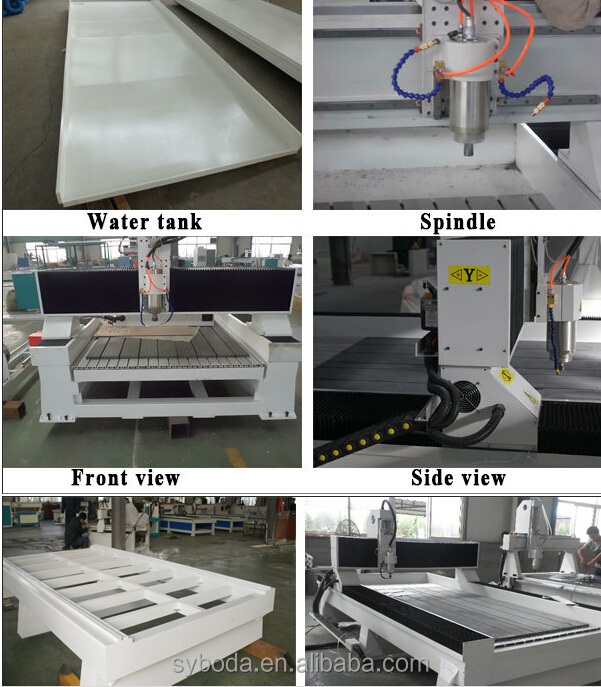

6. Water proof and dustproof design for the CNC machine protects the transmission parts from broken

7. For every set cnc stone engraving machine three axes adopt Taiwan high precision square guide rail, X and Y axes adopt rack and piniontransmission, fast working,high efficiency and low cost; Z axis adopts Taiwan screw,with high precision and longevity

8. Water tank and automatic water cooling system for cutters.

9. High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.

10. We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.



Main Parameters of quarry stone cutting machine FS-1325

Model No.

FS-1325

Working Area

1300x2500x200mm

Spindle Motor

4.5kw water cooling spindle

Spindle Speed

0-24000RPM

Drive Motor

Stepper Motor

Command

G Gode

Cutter diameter

3.175-12.7mm

Maximum Idling Speed

35m/min

Precision

0.05mm

Table Top

Aluminum T-slot table protected with PVC

Controller

NC STDUIO OR DSP

Power Requirements

3-phase 380V/50HZ or as request



Other Stone Cnc router Machine Size: 600*900mm;900*1500mm;1200*2400mm;1500*3000mm;2000*3000mm'3000*4000mm



FS-1325 Stone Cnc router Applications :

Mable/Sonte: Engraving on various granite, bluestone, marble ,grit stone, ceramic tile, soapstone etc.

Metal: Light metal like aluminum and brass

Woodworking: Wood, plastic, PVC, Density board, acrylic, etc.
