  • Stone Crusher

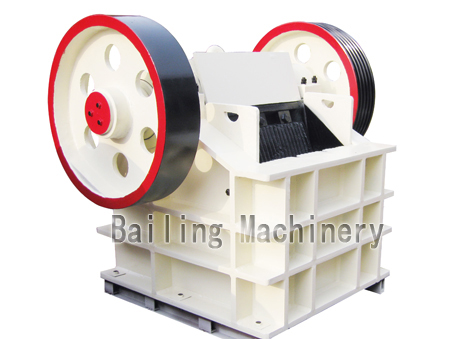

Stone Crusher

This series of stone crusher is widely used in crushing all kinds of mining stones primarily in mining, metallurgical industry, building material, highway, railway, and chemical industry, and the largest compression resistance of the material to be crushed is 320Mpa.

Product Details

Quick Details

Description

Model

Max. Feeding Size (mm)

Discharge Size (mm)

Capacity (t/h)

Motor Power (kW)

Overall Dimensions (mm)

Weight (t)

PE150×250

125

10-14

1-3

5.5

896×745×935

1.5

PE250×400

200

20-50

5-20

15

1150×1275×1240

2.8

PE400×600

350

40-100

15-60

30

1700×1732×1653

6.5

PE500×750

425

50-100

30-85

55

2035×1921×2000

12.5

PE600×900

480

65-160

60-130

75

2290×2206×2370

18.5

PE750×1060

630

80-140

80-180

110

2620×2302×3110

29.5

PE900×1200

750

95-165

90-260

110

3789×2826×3025

56

PE1000×1200

850

195-265

315-550

110

3335×3182×3025

57

PE1200×1500

1000

150-300

400-800

160

4200×3750×3820

100.9

PEX150×750

120

18-48

5-16

15

1200×1500×1200

3.8

PEX250×750

210

15-60

10-40

22

1667×1545×1020

5

PEX250×1000

210

15-60

15-50

30

1550×1964×1380

7

PEX250×1200

210

15-60

20-60

37

2192×1900×1950

9.8

PEX400×900

350

25-80

30-120

75

2200×2000×2000

13

PEX300×1300

250

20-90

16-65

55

1930×2400×1747

11.6


This series of stone crusher is widely used in crushing all kinds of mining stones primarily in mining, metallurgical industry, building material, highway, railway, and chemical industry, and the largest compression resistance of the material to be crushed is 320Mpa. It mainly crushes very hard stone materials and huge hard materials. Medium and large jaw crushers are our main products.

Working Principle of Jaw Crusher:
The motor transmits through belt, drives the movable jaw up and down by eccentric shaft. When the moving jaw plate rises, the angle between the fixed jaw plate and the movable jaw plate gets larger, and the materials can be crushed to reach the crushing target. When then moving jaw plate is down, the angel between the moving jaw plate and fixed jaw plate becomes smaller. The movable jaw plate leaves the fixed jaw plate under the effection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.

Stone Crusher

Characteristics of Jaw Crusher:
High crushing ratio, homogeneous final granularity size, simple structure, reliable working condition, easy maintenance, low operating cost and so on.

Company Profile

Henan Bailing Machinery Co., ltd is a professional manufacturer of mining machinery in China. Having 44,000 square meters factory, we take crushers, beneficiation equipments, mills, screens, cement production line and dryers as our main products, which are sold to more than 30 countries and regions in Africa, Middle East, North and South America, South Asia, Hong kong and Taiwan regions.
Taking quality as the soul of our company, we adopt advanced technology and bulid a strict quality control system. And we provide not only good quality products, but also strong tech assistance from design, production to installation, commissioning and debugging.
