  • Stele Sheet Shearer

Stele Sheet Shearer

This machine has the advantages of compact structure, small noise, stable motion.Control system adopts PC programmable control. Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description


Skype:snowing1203
MSN:luckywang03@hotmail.com

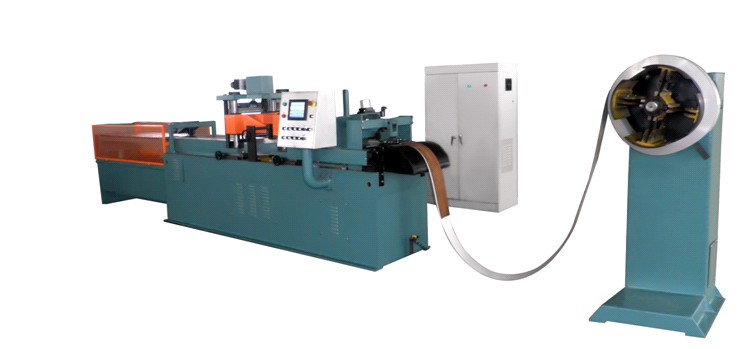

The SZJ column plate shearing machine is mainly used in the small transformer core column shear. This machine has the advantages of compact structure, small noise, stable motion.

The machine is composed of an uncoiler, encoder, feeding device, two sets of cutting, discharging conveying device, the material supporting stage, control system and all kinds of guiding and positioning device. The feeding device adopts the servo motor to drive and the encoder control, makes the feeding of high precision, fast speed. Shear driven by servo motor connected with the eccentric shaft to rotate, can accurately control the shear velocity. Feed roller clamping, relax the control cylinder.

Uncoiling machine using AC frequency converter, work through the buffer pit infrared detection system can be adjusted automatically, can also be manually controlled, and shearing speed synchronization. The feeding device is also used with AC frequency conversion speed regulating, can meet the high speed feeding, emergency stop, slow speed, high speed feed back, finish cutting. Shear forming silicon steel sheet by a discharge conveyor belt to the material supporting stage, rapid action, reliable, head cutting waste by waste discharged outside the body.

A positioning guide device adopts a ball screw and linear guide rail. The small cylinder side clamping, improve the sheet guiding accuracy. The electric control system adopts PC programmable control. Total console in shearing machine central, can conveniently on the shear line components in the control and adjustment. Shearing machine factory randomly matched for cemented carbidetool materia.

SZJ-Stele Sheet Shearer
Main technical parameters
NO.
Item
Parameters
SZJ-400
SZJ-600
1
Shearing thickness
40mm~400mm
40mm~600mm
2
Shearing width
≤0.35mm
3
Shearing length
300mm~1600mm
300mm~2900mm
4
Feeding speed
150m/min
 5
Shear angle
90°(Double angle)
 6
Shearing burrs
≤0.03mm
7
Shearing length tolerance
L<1000mm,±0.1mm
L>1000mm,±0.15mm
8
Scissors material
Hard alloy(50~1000000)
9
Roll diameter of the hole
φ500
10
Outer diameter of coiled material
No more than 1000
11
Weight of material
No more than 1500kg
12
Spindle telescoping range of decoiler
φ460~φ520
13
Motor power
10kw
14
Total weight
4500kg






















123


Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
