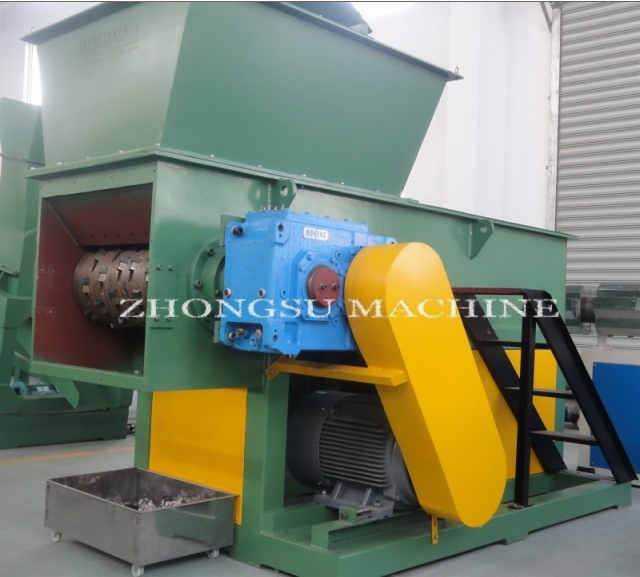

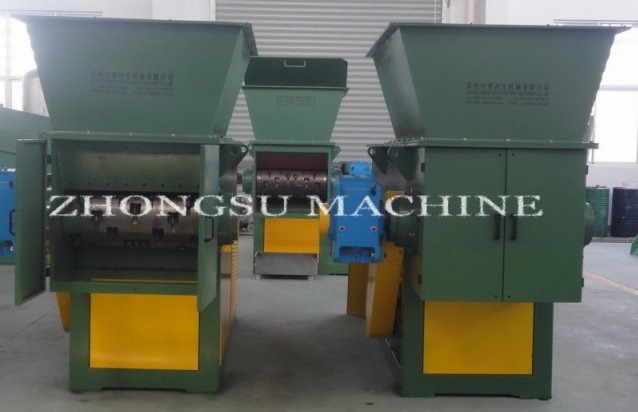

Single-Shaft Shredder SS-F

Rotary blade position adopts embedded with high strength screw connected to blade spindle, can prevent the phenomenon that welding blade drop by long-term quake. Email:liqimei1121@163.com

Product Details

Quick Details

Description

1.Movable blade,dismounting convenience, easy for cleaning and maintenance.



  2.Each rotary blade has four cutting edge, can be used again after rotating 90°.



  3.Hvaing reducer with spindle,smooth operation, low noise, large rotating torque.



  4.PLC control system,positive and negative turn automatically,running machine more safety.



  5. Backfire treament after weldinging tank,  dissolve weld stress.



  6.Blade position apply precision machining,making sure the same space between each rotary knife and fixed knife.

Model

Main parameter

SS-F600

SS-F 800

SS-F 1000

Main motor

18.5kw

37kw

45kw

Hydraulic motor

1.5kw

2.2kw

2.2kw

Bleads

(fixed+rotary)

26 +1pic

34 +2 pics

42 +2 pics

Bleads material

D2

hrc58-60

D2

hrc58-60

D2

hrc58-60

Running diameter

300mm

400mm

400mm

Roller length

600mm

800mm

1000mm

Rotor speed

83rpm

83rpm

83rpm

Cyclinder travel length

550mm

950mm

950mm

Inlet size(mm)

600X900

800X1350

1000X1350

Weight

2500kg

4000kg

5500kg

capacity

400-500kg/h

600-800kg/h

800-1000kg/h
