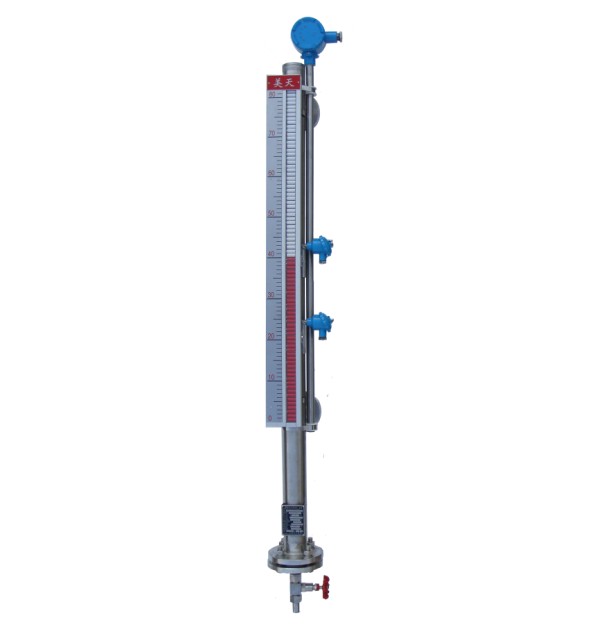

MTUHZ-53C Magnetic Float Level Gauge is the product manufactured by adopting, developing and improving the technology of foreign similar products. The Level Gauge can be available for level detection of medium contained inside towers, tanks, chutes, spherical container, boilers and steam turbine etc. Products have the characteristics of high-sealed and anti-leak. As the liquid medium is isolated from indicator completely, liquid level detection is very safe, reliable and durable. The whole process of measurement has no blind spots, with clear display, intuitive readings, and wide measurement range. It is equipped with MTUHZ-58 type liquid level transmitter which can convert liquid level signal into two-wire system of 4-20mADC standard signal, to realize long-range detection, display, records and control.
Measurement Range: 200-6000mm (manufactured in segment if it’s longer than 6m)
Medium Density: 0.5-2.0g/cm3
Difference of Medium Density : ≥0.15g/cm3(measurement border)
Working Temperature: -80-400℃
Working Pressure: 0.1-32.0Mpa
Medium Viscosity: ≤0.4Pa.S
Process Connection: flange diameter DN20-DN50
Flange Standard: please note when ordered by users.
Transmitting Output Signal: 4-20mADC(two-wire system) Loaded Resistance:≤500Ω
Power Supply:24V DC±10%
Explosion-proof :Ex dllCT6, Ex iallCT4-6
