• Shanghai New Type Rotary Ball Mill

Shanghai New Type Rotary Ball Mill

Rotary Ball Mill: 1.ISO9001:2000,CE; 2.Input size:15-25mm; 3.Output size:0.047-0.089mm; 4.Big capacity,continuous working; haishiqi12@yeah.net

Product Details

Quick Details

Description

Ball Mill,Rotary Ball Mill



1.Rotary Ball Mill Application

Rotary Ball Mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grindable materials.

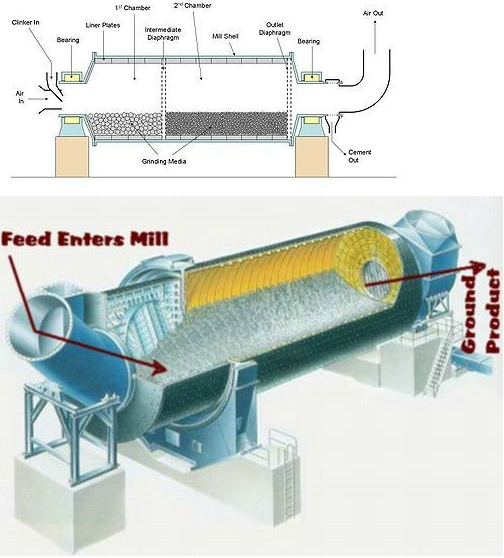

2.Rotary Ball Mill Working Principle

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.

3.Rotary Ball Mill Structure

The machine is composed by feeding part, discharging part, rotation part and driving part .The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner.



4.Rotary Ball Mill Feathers

1. Wide usage, simple structure, convenient maintenance;

2 Body liners and grinding medium could be made of various of materials, good corrosion resistance;

3. Easy installation, adjustment.



5.Types of Rotary Ball Milll

We have various of Rotary Ball Mill,such as 900*2100, 900*3000, 1200*2400, 1200*2800, 1200*4500,

1500*3500, 1500*4500, 1500*5700, 1830*7000 etc.

In order to give you a responsible quotation, you can inform us the following information:

1. What’s the material you are going to deal with?

2. What’s the granularity of the material?

3. What’s the granularity of the final products are you going to achive?

4. What’s the producing capacity you are going to achieve?



6.Rotary Ball Mill Parameter

Model

input size(mm)

Output size(mm)

Weight of ball(t)

Speed of bucket(r/min)

Power(kw)

Capacity(t/h)

Weight(kg)

900*1800

15

0.075-0.89

1.9

37

15

0.5-2

3400

900*2100

15

0.075-0.4

2.3

37

18.5

0.4-2

3900

900*3000

25

0.075-0.4

3.85

35

30

1.1-2.5

7780

1200*2400

25

0.075-0.4

4.6

35

30

1.3-3.2

8650

1200*2800

25

0.075-0.4

5.4

35

37

1.5-3.7

10020

1200*4500

25

0.075-0.4

8.6

35

45

2.7-6.79

14000

1500*3000

25

0.047-0.4

9

29

75

3.3-8.2

14122

1500*3500

25

0.047-0.4

10.5

29

75

3.3-8.5

15636

1500*4500

25

0.047-0.4

13.5

29

90

4.5-12

20000

1500*5700

25

0.047-0.4

17

29

110

2.6-14

25000

1830*3000

25

0.047-0.4

13.5

24

135

4-15

28000

1830*4500

25

0.047-0.4

20

24

155

4-19

32000

1830*7000

25

0.047-0.4

31.5

24

210

6-22

37500

2100*3000

25

0.047-0.4

18

22

210

6.4-28

40790

2100*4000

25

0.047-0.4

21.5

22

210

7.6-28

43454

2200*3600

25

0.047-0.4

25

21.7

245

5.2-32

44000

2200*7000

25

0.047-0.4

46

21.7

380

15-38

54000

2400*3600

25

0.047-0.4

28

21

320

8-60

47000

2400*4500

25

0.047-0.4

35

21

380

8.5-60

65000



Company Profile

Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants.

We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance.

While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions.

Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
