• Shaking Table for Gravity Separaton Form Shanghai

Shaking Table for Gravity Separaton Form Shanghai

Shaking Table for Gravity Separaton 1.Big steel intensity 2.Good wearability 3.Feeding Size:0.15-2mm 4.ISO9001:2000 haishiqi12@yeah.net

Product Details

Quick Details

Description

Features of  Shaking Table for Gravity Separaton

1)Big steel intensity.
2)Low water-absorptivity.does not increase height
3)Good wearability of the work surface.
4)Anti-chemical corrosion,acid do not avoid medicament in ore polp.

5)Good weather resistenance,good shape stablity;

6)Good selection function,good index stability.



Application of  Shaking Table for Gravity Separaton :

Shaking table is one of the mineral separation equipment of gracity concentrator.It is easy to be operated and can

produce high grade concentrated ore,secondary concentrated ore,middlings and gangue,ect at the same time.It is

widely used to separate tungsten,stannum,niobium,other rara metal and noble metal ores;It can also be used to

separator iron,manganese minerals,coal,and so on.



Struature of   Shaking Table for Gravity Separaton :

Shaking table is made of machine head,motor,adjusting gradient device,bed,bunker,water tank,rifle bar and

lubrication system.

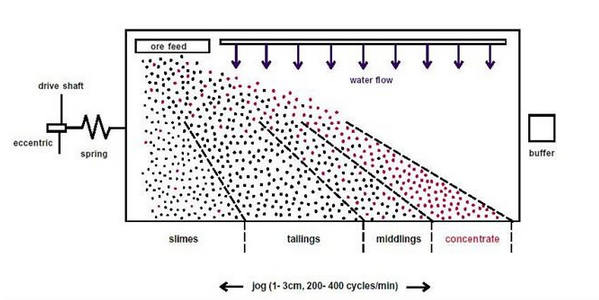

Working Principle of   Shaking Table for Gravity Separaton :

During the benificiation process,the mineral particles from the angle above the bed surface go to the slot,

meanwhile by feedthrough fiashing water transversely.In this way,under the effect of gravity,the transverse direction

running water impulsive force,and the inertia and friction created by the reciprocation symmetry of movement of the

bed sueface,the ore grains are separated according to the proportion and the granularity,and makes the transversal

motion along the inclined surface of bed.Therefore the ore grains with different proportion and different granularity

fly heading different direction,and discharge separately from the ore concentrate end and the debris side’s two

different areas,finally divided into the ore concentrate,the middling and the debris



Types of  Shaking Table for Gravity Separaton :

We have various of shaking table, such as Coarse ore surface of bed , Granulated sugar surface of bed , Ore slime

surface of bed etc. In order to give you a responsible quotation, you can inform us the following information:



1. What’s the material you are going to deal with?

2. What’s the feed size,feeding volume,and feeding density?

3. What’s the final products are you going to achive?

4. What’s the mineral dressing area?

Our engineers will suggest you the most suitable one for you according to your information.



Technical Parameter of Shaking Table for Gravity Separaton :

Name

bed surface for coarse sand

bed surface for fine sand

bed surface for slurry

Bed

dimension



Length (mm)

4450

4450

4450



transmission  end width (mm)

1855

1855

1855



concentrate ore width (mm)

1546

1546

1546

Max Feeding Size (mm)

2

0.5

0.15

Feeding volume   (t/h)

30-60

10-20

15-25

Feeding density        (%)

25-30

20-25

15-25

stroke (mm)

16-22

11-16

8-16

Frequency ( t/s)

45-48

48-53

50-57

Cross Slope of Surface

2.5°-4.5°

1.5°-3.5°

1°-2°

mineral dressing area(m2)

7.6

7.6

7.6

Shape of bed surface

Rectangle

indention

Triangle

Motor Power     (KW)

1.1

1.1

1.1

Driving type

Eccentric link structure



After-Sale Service:

Erection and Commissioning

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time:25~30 days after receiving advanced payment

Products Certificate: TUVRheinland CE, ISO9001:2000
