  • Setting Torque Wrenches

Setting Torque Wrenches

 *Double window scale,plastic grip,high precision,resulting in fast and efficient operation.
*The 45-tooth reversible ratchet head results in both clockwise and counter clockwise.
*+/-4% accuracy in clockwise direction exceeds international specifications.

Product Details

Quick Details

Description

*Double window scale,plastic grip,high precision,resulting in fast and efficient operation.
*The 45-tooth reversible ratchet head results in both clockwise and counter clockwise.
*+/-4% accuracy in clockwise direction exceeds international specifications.
*Ergonomic soft TPR grips are comfortable to use.
*Lock Knob secures selected torque from accidental change.
*Dual Metric and English scales are easy to read and set,fine increment operation.
*The identity code marked on each wrench makes it possible to trace.


Metric Unit
Part
Code
Drive Torque Range Length Width Weight
N.m Lb.ft mm mm kg
CM1012 1/4" 2.5-12 20-105* 285 38 0.54
CM1020 1/4" 4.0-20 30-180* 285 38 0.54
CM2030 3/8" 6.0-30 50-250* 313 38 0.68
CM3030 1/2" 6.0-30 50-250* 313 38 0.68
CM2060 3/8" 10-60 9-45 383 38 0.82
CM3060 1/2" 10-60 9-45 383 38 0.82
CM2100 3/8" 20-100 15-75 438 38 0.90
CM3100 1/2" 20-100 15-75 438 38 0.90
CM2125 3/8" 25-125 20-90 438 38 0.90
CM3125 1/2" 25-125 20-90 438 38 0.90
CM3200 1/2" 40-200 30-150 463 40 1.02
CM3335 1/2" 65-335 50-250 523 40 1.16
CM4335 3/4" 65-335 50-250 523 40 1.20
CM3335L 1/2" 65-335 50-250 700 40 1.95
CM4335L 3/4" 65-335 50-250 700 40 2.00
CM4400 3/4" 80-400 60-300 700 57 2.75
CM4500S 3/4" 100-500 80-400 700 57 2.75
CM4500 3/4" 100-500 80-400 840 60 4.04
CM4800 3/4" 160-800 120-600 1040 60 4.93
CM5800 1" 160-800 120-600 1040 60 4.93
CM41000 3/4" 200-1000 150-750 1040 60 4.93
CM51000 1" 200-1000 150-750 1040 60 4.93
CM51500 1" 300-1500 200-1100 1250 72 8.20
CM52000 1" 400-2000 300-1500 1250 72 8.20
CM53000 1" 600-3000 400-2200 1250 72 9.50
*Unit is Lb.in


English Unit
Part
Code
Drive Torque Range Length Width Weight
Lb.ft N.m mm mm kg
C1200 1/4" 40-200* 4.0-22 275 38 0.54
C2250 3/8" 50-250* 60-280* 310 38 0.68
C2100 3/8" 20-100 25-135 420 38 0.90
C3100 1/2" 20-100 25-135 420 38 0.90
C3150 1/2" 30-150 40-200 460 40 1.02
C3250 1/2" 50-250 70-340 520 40 1.16
C4250 3/4" 50-250 70-340 520 40 1.20
C3250L 1/2" 50-250 70-340 700 40 1.95
C4250L 3/4" 50-250 70-340 700 40 2.00
C4600 3/4" 100-600 150-800 1040 60 4.93
C5600 1" 100-600 150-800 1040 60 4.93
* English unit is Lb.in,Metric unit is dN.m


Company Profile

 Shanghai UB Machinery Co., Ltd is a high-tech enterprise in China and a leading manufacturer and distributor of torque products including mechanical and electronic wrenches, testers, multipliers and calibration equipment.

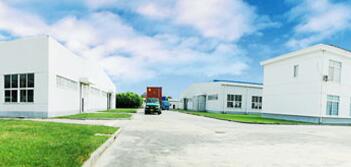

Our modern 40,000 square meters factory is located conveniently to both downtown Shanghai and Pudong International Airport in Fengxian, Qianqiao Industrial Garden Zone near Hangzhou Bay. It is equipped with precision standard and custom-made machinery and equipment, and is staffed by professional engineers, experienced managers and highly trained production and inspection personnel. The Factory's ISO 9001 accreditation and a dedication to continuous product and quality improvement is the key to producing world-class torque products that comply with international standard ISO 6789 and U.S. standard ASME B107.14-2004.
