• Semiautomatic CO2 Gas Shielding Welding Inverter

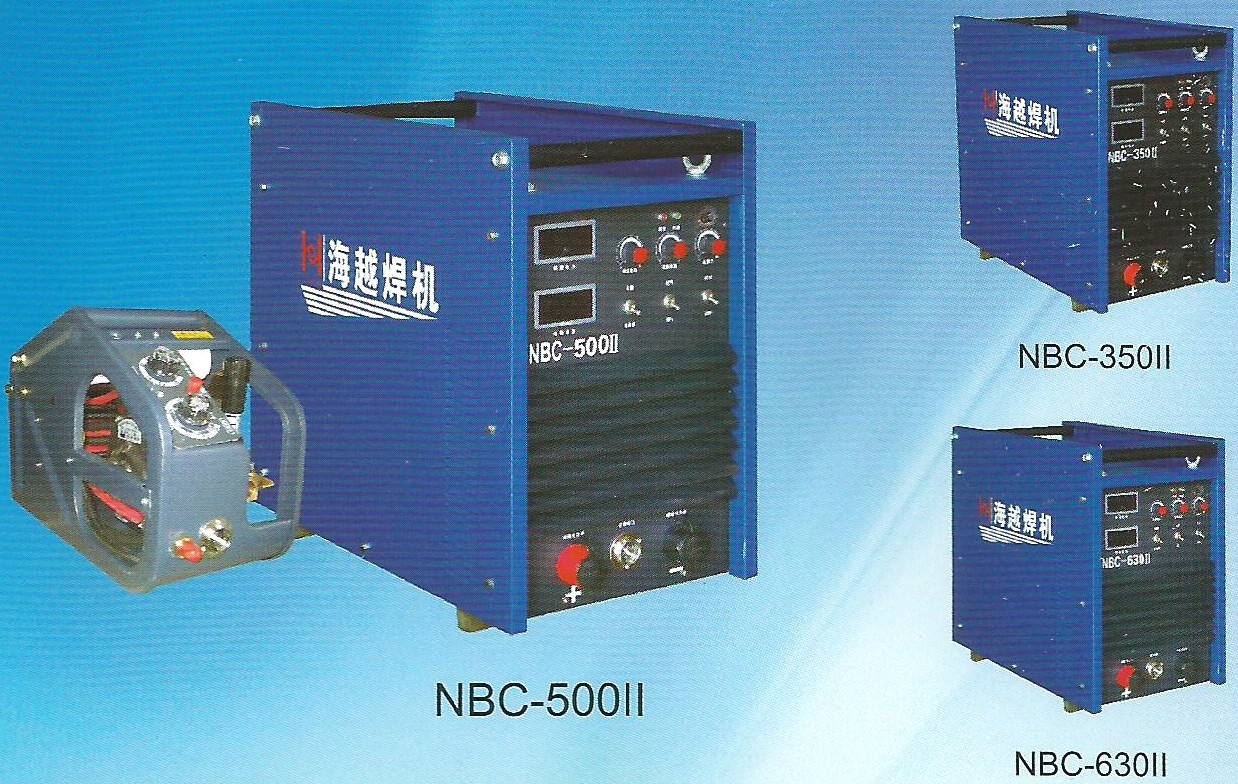

Semiautomatic CO2 Gas Shielding Welding Inverter

Semiautomatic CO2 Gas Shielding Welding Inverter. For more information, please contact us without hesitation! E-mail: wangyuhua0321@163.com

Product Details

Quick Details Parameter

Rated Input Voltage: : 380 V 50/60 Hz
Rated Input Current: : 14 A
Rated Input Capacity: : 13.8 KVA
Rated Output Current: : 350 A
No Load Voltage: : 60 V
Current Adjusting Rage: : 60-350 A
Operating Voltage: : 15-40 V
4-Step Welding Current Range: : 60-350 A
4-Step Operating Voltage: : 15-40 V
Welding Wire: : 1.0, 1.2 mm
Rated Duty-Cycle: : 60 %
Power Factor: : 87 %
Efficiency: : 89 %
Weight: : 55 KG
Dimensions: : 550*350*505 mm

Description


Semiautomatic CO2 Gas Shielding Welding Inverter

Performance feature

* Three-phase, portable, fan-cooled, IGBT Welding inverter for CO? Shielding Welding.

* Wave-form control for lower welding spatter, good dynamic characteristic for more stable welding process, and 4-step operating mode for filling the welding piddle.

Auto burn back.

* Selectable synergic parameter setting, adjustable arc-force dynamic and easy handing.

* 2-step mode, 4-step mode, spot welding mode.

* Auto Arc-compensating ability.

Auto power net voltage compensating capability for wide application scope.

* With high quality wire feeder, the wire can be fed reliably, precisely controlled and as smoothly as possible.

* Slow wire-feed, hot arc-ignition, are started succession for 100%.


Application scope

* Mainly used for metal materials welding, such as mild steel, alloyed steel, stainless steel and high-strength steel.

* All position welding is available with high efficiency and low cost, and widely used in middle and thick board welding.


Semiautomatic CO2 Gas Shielding Welding Inverter

Semiautomatic CO2 Gas Shielding Welding Inverter

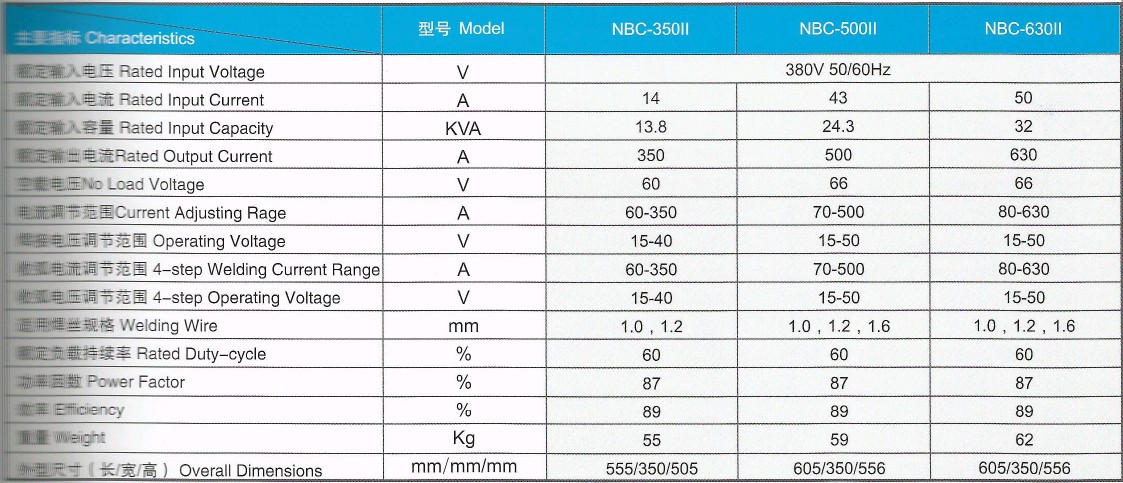

Technical parameters

parameter
