  • Sand Washing Machine

Sand Washing Machine

The Sand Washing Machine is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand.

Product Details

Quick Details

Description

Type

Specification of impeller
(mm)

Feeing size
(mm)

Capacity
(t/h)

Motor power
(kw)

Weight
(t)

Overall size
(mm)

XSD2610

φ2600×1000

≤10

20-50

7.5

2.68

3320×2125×2670

XSD3016

φ3000×1600

≤10

50-120

15

3.26

3810×2686×3085

XSD3620

φ3600×2000

≤10

120-180

18.5

4.3

4500×3206×3480


The Sand Washing Machine is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand. XSD series Sand making machine is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factorys quartz sand and refilling pressure sand.

Working Principle of Sand Washing Machine:
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

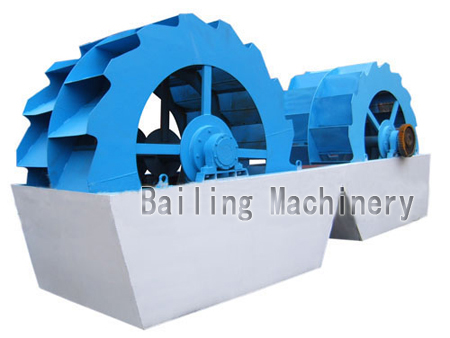

Sand Washing Machine

Characteristics of Sand Washing Machine:
Reasonable structure, large capacity, low consumption, little loss of the sand during the washing process, low failure rate.

Company Profile

Henan Bailing Machinery Co., ltd is a professional manufacturer of mining machinery in China. Having 44,000 square meters factory, we take crushers, beneficiation equipments, mills, screens, cement production line and dryers as our main products, which are sold to more than 30 countries and regions in Africa, Middle East, North and South America, South Asia, Hong kong and Taiwan regions.
Taking quality as the soul of our company, we adopt advanced technology and bulid a strict quality control system. And we provide not only good quality products, but also strong tech assistance from design, production to installation, commissioning and debugging.
