  • SKJ-450 Silicon Cutting Line

SKJ-450 Silicon Cutting Line

Silicon Cutting Line 1.double decoiler 2.two servo motor feeding device 3.feeding transport device 4.double steel automatic Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description

Email:yuyang@mec.com.cn
Skype:snowing1203
MSN:luckywang03@hotmail.com

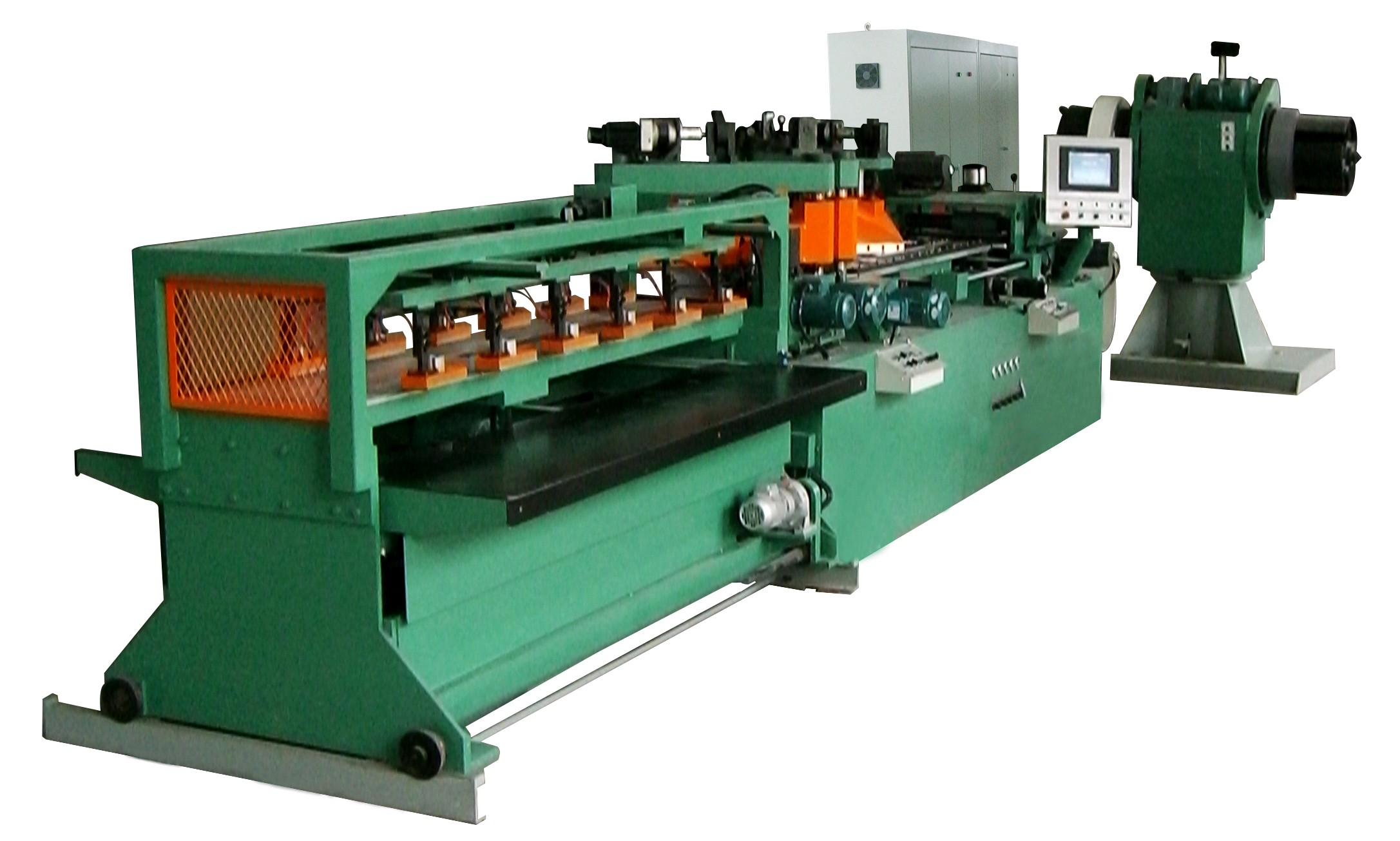

SKJ-450 silicon cutting machine is made up of double decoiler ,two servo motor feeding device. one set V punching machine(servo driver),one set of 45 angle cutting machine(servo driver),one set of 135 cutting machine(servo driver),feeding transport device, double steel automatic folding machine, All  line use PLC control, Touch screen, Input shearing shape, shearing dimension, and qty ,The equipment work automatic

No.
Item
Parameters
1
Shearing thickness
≤0.35
2
Shearing width
40~450
3
Shearing length
340~2000
4
Feeding speed
 150m/min
5
Shearing accuracy
±0.2
6
Shearing angel accuracy
±0.025
7
Shearing burrs
≤0.02mm
9
Outer diameter of coiled material
No more thanΦ1000
9
Weight of material
No more than 1500kg
10
Spindle telescoping range of decoiler
Φ470~Φ520
11
Carried material table height
No more than 200
12
Total motor
23.75Kw
13
Demensions(L*W*H)

Decoiler
1400X900X2000
Shearing machine
4000X1300X1750
Folding machine
2650X1450X1420
14
Total weight
8t

Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
