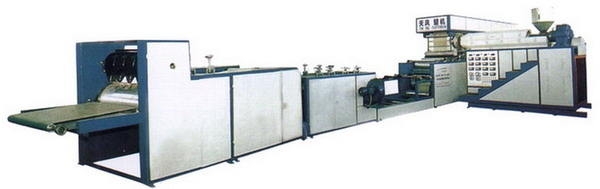

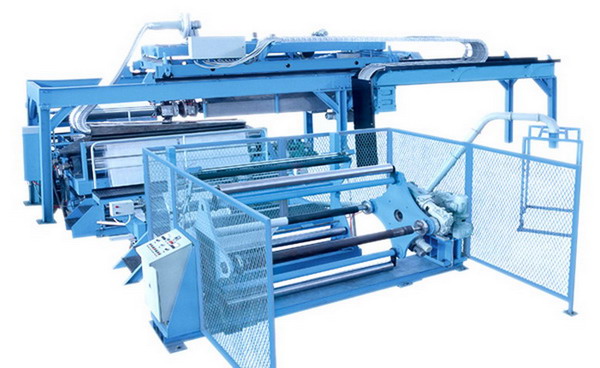

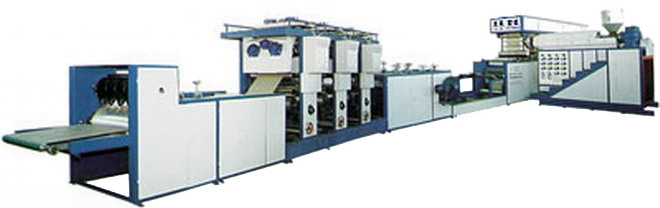

SJ-FMF Series Plastic Extrusion Laminating Machine

This machine is suitable for coating film on single or double side of the below fabrics, or laminating the below fabric with BOPP film, CPP film or craft paper by PP or LDPE as raw material. naijiaxin11@yeah.net

Product Details

Quick Details

Description

Optional item: automatic feeder, mirror-roller unit, side-shiftting gussetting unit, L type cutting unit, rewinding unit, etc.

Plastic woven bag, Jumbo bag, FIBC bag, Contain bag, Geo textile, Tarpaulin, Non-woven fabric, etc.



Model

SJ-FMF800-90I

SJ-FMF800-90II

SJ-FMF1200-90

SJ-FMF2000-120

Dia. of screw

90mm

90mm

90mm

120mm

Ratio of screw L/D

26:1

26:1

28:1

28:1

Width of die

1000mm

1000mm

1350mm

22000mm

Max. coating width

800mm

800mm

1200mm

2000mm

Coating thickness

0.02-0.08mm

0.02-0.08mm

0.02-0.08mm

0.02-0.08mm

Laminating speed

20-60m/min

20-60m/min

20-80m/min

20-80m/min

Number of printing color

-

1-3 colors

-

-

Max. dia. of unwinding and winding cloth

1000mm

1000mm

1000mm

1000mm

Cutting mode

Cool cutting

Cool cutting

-

-

Cutting length

500-1299mm

500-1299mm

-

-

System installed capacity

53kw

53kw

100kw

140kw

Weight (About)

6000kg

6000kg

9000kg

10000kg

Overall dimension

(L×W×H)

11000×5500×2500mm

18000×5500×2500mm

11000×10600×2800mm

11000×13000×3400mm

Company Profile

Zhejiang Tianfeng Plastic Machine Plant is a key industrial enterprise in the local region. With a registered capital of 10.08 million RMB yuan and a fixed capital of 25 million RMB yuan.
     It is a specialized manufacturer of series of whole set plastic machinery products. Having passed ISO9001:2000 International Quality System authentification.The Factory has strong technical strength, excellent equipments, advanced production technic and complete quality guarantee system. "Tianchen Brand" series of plastic machinery products are well sold all over the country and are exported far to Russia, East Europe.
    In the Middle East and other countries and regions. They have won good reputation among users both at home and abroad.
