Rubber Dam Accessories

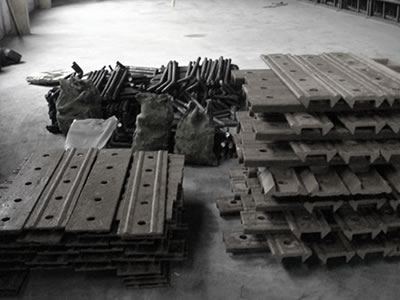

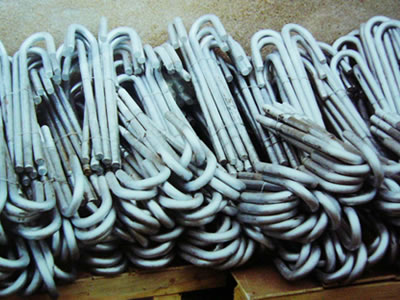

Installation of rubber dam is fixed dam bag to concrete foundation firmly. Mentioning fix and install, necessary accessories are clamping plates and anchor bolts.

Product Details

Quick Details

Description

Installation of rubber dam is fixed dam bag to concrete foundation firmly. Mentioning fix and install, necessary accessories are clamping plates and anchor bolts.
Specification
Coating of clamping plate: galvanized, paint.
Specification of clamping plate and anchor bolt
Code Upper clamping plate (mm) Lower clamping plate (mm) Bolt diameter × embedded depth (mm) Dam height (m)
AS-1 996 × 100 × 12 998 × 110 × 10 M20 × 450 < 2
AS-2 996 × 110 × 14 998 × 120 × 10 M24 × 500 < 2
AS-3 996 × 110 × 34 996 × 120 × 15 M24 × 600 < 2
AS-4 996 × 120 × 16 998 × 128 × 10 M24 × 600 < 2
AS-5 996 × 120 × 18 998 × 128 × 10 M27 × 600 2.5
AS-6 996 × 120 × 35 996 × 130 × 6 M24 × 450 1
AS-7 996 × 120 × 35 996 × 130 × 6 M24 × 450 1.5
AS-8 996 × 120 × 35 996 × 130 × 6 M24 × 450 2
AS-9 996 × 120 × 35 996 × 130 × 6 M24 × 500 2.5
AS-10 996 × 120 × 40 996 × 130 × 15 M27 × 600 2.5
AS-11 996 × 130 × 20 998 × 138 × 10 M27 × 750 2.5
AS-12 996 × 130 × 40 996 × 140 × 8 M27 × 600 3
AS-13 996 × 130 × 40 996 × 140 × 8 M27 × 650 3.5
AS-14 996 × 130 × 44 996 × 140 × 16 M27 × 700 3
AS-15 996 × 140 × 22 998 × 148 × 10 M30 × 850 3.5
AS-16 996 × 140 × 45 996 × 150 × 10 M30 × 700 4
AS-17 996 × 140 × 48 996 × 150 × 16 M30 × 750 3.5
AS-18 996 × 150 × 24 998 × 158 × 10 M36 × 950 5
AS-19 996 × 150 × 45 996 × 160 × 10 M32 × 750 4.5
AS-20 996 × 155 × 50 996 × 170 × 16 M30 × 800 4
AS-21 996 × 160 × 45 996 × 170 × 12 M34 × 800 5
AS-22 996 × 165 × 58 996 × 180 × 16 M33 × 850 4.5
AS-23 996 × 180 × 45 996 × 200 × 12 M36 × 1100 5.5
AS-24 996 × 187 × 62 996 × 200 × 19 M36 × 950 5
AS-25 996 × 200 × 80 996 × 210 × 20 M42 × 1100 5.5
AS-26 996 × 210 × 115 996 × 220 × 23 M42 × 1100 6
Installation process
Unroll the rubber bladder onto the concrete foundations.
Punch holes on rubber dams for anchor bolts.
Install and fasten spacer pipes.
Concrete placing.
Fixed the rubber bladder to buried anchor bolts.
Fasten the rubber bladder using upper clamping plates.
Tight the anchor bolts.
Complete commissioning tests.
Feature
Complete specification: water retaining height range is 2-6 m.
Anti corrosion: painting, galvanized, dip bituminous, etc.
High standard casting: unified mold, apply finely cast, universal components, upper and lower clamping plates can assemble arbitrarily.
High holding strength and safety.
Easy to install: clamping plates apply bump docking which has good leak proof performance.
Low cost.

Company Profile

Zaoqiang Dacheng Rubber Co., Ltd. is located in Northern industrial park, Hengshui, Hebei, China. We are one of the leading manufacturers in development, design, manufacturing and marketing of inflatable rubber dams all over the world.

There are air inflatable rubber dam, water inflatable rubber dam and bookend rubber dam.

We have several kinds of inflatable rubber dam: air inflatable rubber dam, water inflatable rubber dam, bookend rubber dam,shield type rubber dam and spoiler rubber dam. We also offer automatic control system and various accessories. The material structure could be one cloth two rubber, two clothes three rubber, three clothes four rubber, etc. The color of inflatable rubber dam could be black, blue, red, gray, purple, etc. Medium of inflatable rubber dam is air or water. According to installation method, inflatable rubber dam can be divided into single anchor rubber dam and double anchor rubber dam. Double anchor rubber dam includes pillow-like rubber dam and inclined rubber dam.

Our productions are mainly exported to Australasia, America, Europe, Africa, etc. Our customers usually are engineering contractors. We can send out the products in time, also can provide customers construction guidance. Our products are cost-effective which are popular among customers.

Our products are considered to economical, durable, quality and have gained great acknowledgments from our customers. The productions also have simple structure, perfect seismic performance. When the rubber dam collapses completely, it is no resistant to water. The dam can be resistant to corrosion, weathering, aging, abrasion, sunlight, UV, heat and ozone.
