  • Rotary drum dryer

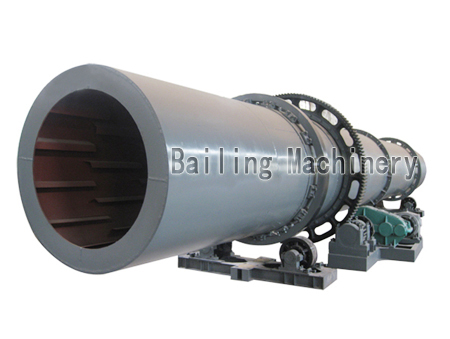

Rotary drum dryer

Rotary dryer is used for drying material with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical.

Product Details

Quick Details

Description

Model

The diameter (mm)

Length (m)

Slope (°)

Speed
(r/min)



Power (kw)

Volume (m3)

0.6×8-12

600

8-12

3-5

8

4

2.26

0.8×10-10

800

10-12

3-5

7.2

4

5.02

1.0×10-12

1000

10-12

3-5

6.73

5.5

7.85

1.2×12-18

1200

12-18

3-5

5.8

11-15

13.31

1.5×12-18

1500

12-18

3-5

4.8

15-22

21.2

1.8×12-18

1800

12-18

3-5

3.2

185-30

48.22

2.2×12-22

2200

12-22

3-5

3

22-30

70.43

2.8×15-24

2800

15-24

3-5

2.59

30-55

147.8


Rotary dryer is used for drying material with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. It can be used for drying many kinds of materials such as limstone slag, coal powder, clay stone etc. It has advantage of reasonable structure, high efficiency, low energy consumption. Rotary dryer mainly consists of rotary body, raw material feeding plate, lifting blade, driving and supporting device, sealing ring and etc.

Rotary drum dryer

Working principle of operation:
The raw material plate which is arranged reasonably with chargeable angles in order, throws moisture materials into the rotary cyclinder. The water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the material would be dryed

Company Profile

Henan Bailing Machinery Co., ltd is a professional manufacturer of mining machinery in China. Having 44,000 square meters factory, we take crushers, beneficiation equipments, mills, screens, cement production line and dryers as our main products, which are sold to more than 30 countries and regions in Africa, Middle East, North and South America, South Asia, Hong kong and Taiwan regions.
Taking quality as the soul of our company, we adopt advanced technology and bulid a strict quality control system. And we provide not only good quality products, but also strong tech assistance from design, production to installation, commissioning and debugging.

Henan Bailing Machinery Co., ltd
