Supplier Details

Year Established:20132004

Business Type:Manufacturer, Trading Company

Management Certifiation:
ISO 9001:2008

  • R6 AA Heavy Duty Battery

R6 AA Heavy Duty Battery

R6 AA Heavy Duty Battery 1.PVC jacket battery 2.No leakage 3.Each battery is reliable 4.SGS,SONCAP etc

Product Details

Quick Details Parameter

Brand Name: : EVERBRIGHT
Model Number: : R6
Battery Type: : Zn/MnO2
Nominal Voltage: : 1.5V
Size: : AA
Nominal Capacity: : >45 Minutes,3.9ohm, Continuous discharge time, E.P.V. 0.9V
Type: : R6 SIZE AA UM-3
Short circuit current: : >3.5A
PCS shrinked: : 4 PCS
Continuous discharge time: : >45 Minutes
Certificate: : SGS, ISO9001:2008,MSDS,SONCAP, etc.
Place of Origin: : Jiangsu, China

Description



R6 AA Heavy Duty Battery


Basic information:

Product
R6 AA Heavy Duty Battery
Chemical System
Zinc-Manganese dioxide (Zn/MnO2)
Standard
IEC standard
Nominal voltage
1.5 Volts
Average capacity
>235 mAh
Open-circuit voltage
1.70 Volts
Closed-circuit voltage
1.46 Volts
Diameter
13.50-14.50 MM
Height
49.20-50.50 MM
Average weight
12.80 Grams
Shelf life
24 Months
Mercury
<0.025%
Battery material
Manganese dioxide, Zinc, Acetylene black, Grophite powder, Carbon rod, PVC, Tinplate bottom etc


Detailed pictures below for your reference:

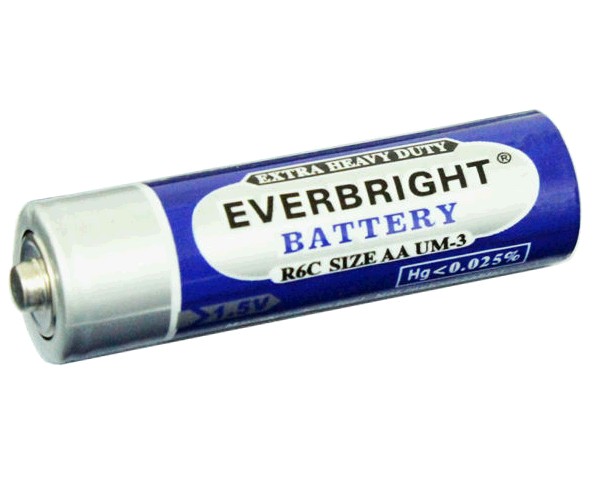

battery 1

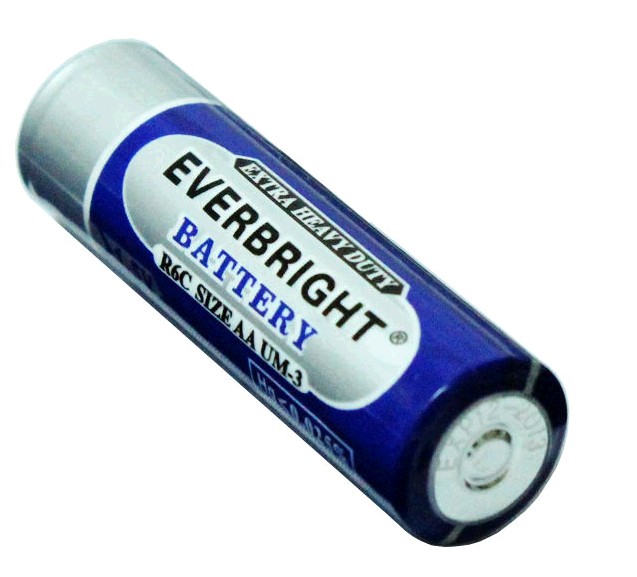

battery 2

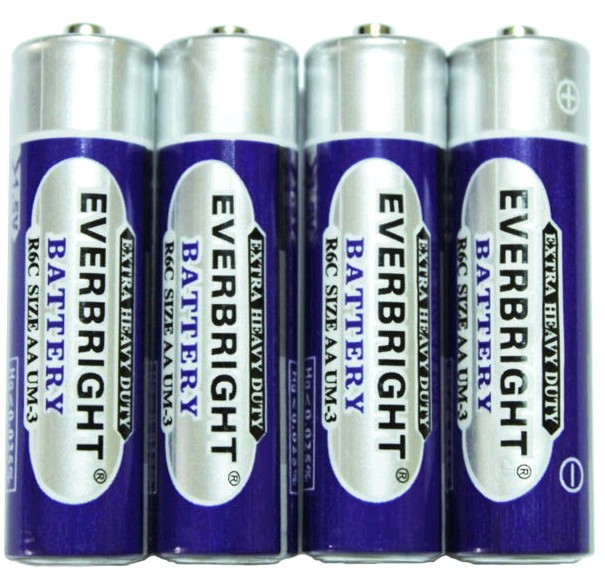

battery 4



Why choose our battery?

Quality
With over 18 years' experience in battery business, we guarantee each single piece of battery is reliable in quality.
Service
Efficient and excellent service is the basic requirement you can expect from us.
Responsibility
Your satisfaction with our batteries and our service is our responsibility.


Technical data:

Art.
No.

Type


Nominal Voltage
(V)
Shelf Life
(Month)

Test Conditions
Discharge Time
IEC Standard(IEC 60085-2:2007)
EVERBRIGHT
2324


R6
AA
UM3

1.5


24

20±2°C,3.9Ω, 24h/d, E.P.V. 0.9V
-----
≥45 Min
20±2°C,43Ω, 4h/d, E.P.V. 0.9V
1320 Min
≥1350Min

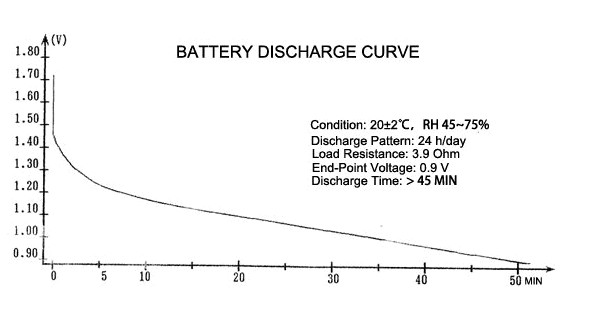

discharge curve

Quality control & performance:

1)Our battery is made of high quality raw materials which have been inspected strictly before usage.

2)Our workers and technicians closely watched each step in the battery production processes, strictly executed the quality management system to insure each battery up to IEC standard.

3)Our battery has the characteristics of high capacity, long-durability, super leak-proof, good performance of continuous discharge, long time of intermittent discharge, and it has low decline rate of capacity.


Packaging details:

Shrink pack
4 PCS
Inner Box
40 PCS
Colorful carton
1,200 PCS
Gross weight
17.00KGS
Net weight
16.00KGS
Measurement
300X295X173MM

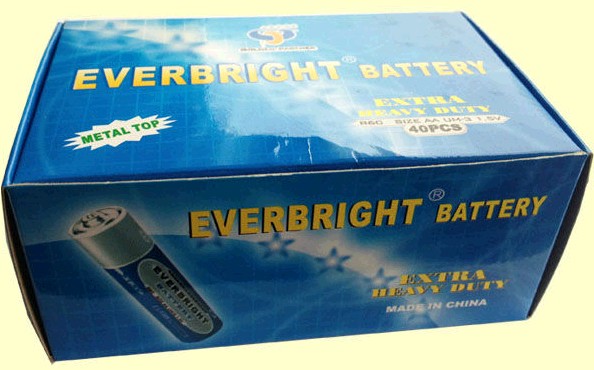

packaging



Product procedure:

1
Zinc can
The zinc can is the negative terminal and anode material
2
Inserting the separator
The separator and the bottom paper are inserted to prevent battery short-circuit between the positive and the negative electrode.
3
Filling cathode material
The mixture of manganese dioxide, electrolyte and others are filled as the cathode material
4
Inserting carbon rod
The carbon rod for collecting electricity is inserted into the middle of the battery
5
Sealing
The plastic gasket for sealing is fitted to prevent leakage and water evaporation
6
Fitting tinplate bottom and metal jacket
The tinplate bottom and washer are placed on the bottom of zinc can and covered by metal jacket
7
Finished product
The finished battery is packed by shrink after inspecting on its voltage, current and appearance


We promise to provide you with high quality battery as well as high efficiency services.




Company Profile

 Golden Partner Logo



Chongqing Golden Partner Imp.& Exp. Co. Ltd., was established in 2004, majored in battery business, and approved Model Enterprise in E-commerce by Chongqing Foreign Trade & Economic Relation Commission in 2010.

As a professional supplier of zinc manganese battery, alkaline battery and storage battery, we produce and sell battery in brand names of EVERBRIGHT & PERFECELL, which enjoy high reputation in the Middle-east countries, Southeast Asia, South America, African countries and other markets.

Our factory possesses 5 battery production lines. Through persistent efforts for years, we have developed a scientific and effective researching and developing system on battery.

Our tenet is "Honesty First, Customer Foremost". We endeavor to bring maximum benefits to our customers with our high quality battery, as well as reasonable prices and satisfactory services.


Photo of our Factory

photo of factory

photo of factory 2
