Our company produce the infrared quartz lamp with all dimensions : short wave and medium wave .Translucent / transparent single / twin quartz tube , different kinds of connect method A/B/C/D/E/F/G/H/J/K and also could golden coating and white reflection coating , using with horizontal or vertical .

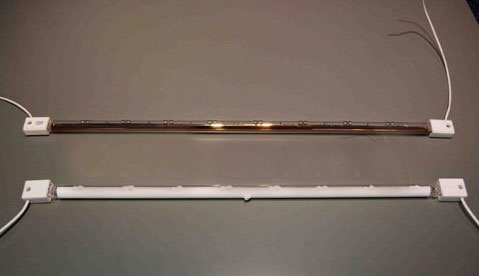

1、IR short wave single/twin tube quartz lamp
Widely used in various fields which rapidity calefactive as
automotive, plastic, leather, printing and other industries.
Short wave quartz lamp used with the circle of tungsten wire to radiation, Closed in quartz glass tube, Its wave length
range of 0.8-1.8 micron, reaching the peak at 1.2 micron.
Single tube quartz lamp section is ID8*OD10 or ID10*OD12,
Max length 1500mm
Twin tube quartz lamp section is A18*B9、A22*B11、A33*B16, Max length 6000mm
According to user requirements can be golden coating and white reflector coating ,to increase the effect of reflection.
Jinzhou New Century Quartz(Group) Co., ltd (called JNC) is located in Jinzhou Economic &Technology Development Zone Liaoning .Quartz factory is very closed to Jinzhou international harbor in North-East China .
Our company was established in 1992, and one of the major quartz glass manufacturer in China. We have several fusion methods, such as electrical continuous, drawing for both transparent and translucent ,electrical rotated fusion for opaque , and flame fusion ingot.
We can also fabrication for infrared provide infrared quartz lamp.
Re-sized transparent tube for semiconductor industries. optical fiber and other industry application. The products are exported to many countries ,such as America, Europe, Asia (Japan, Korea, Taiwan, Singapore etc)
