• QGF series drum filling production line

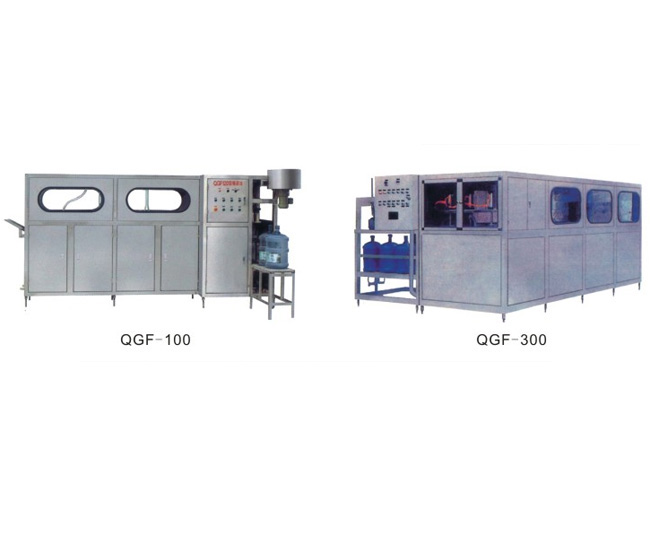

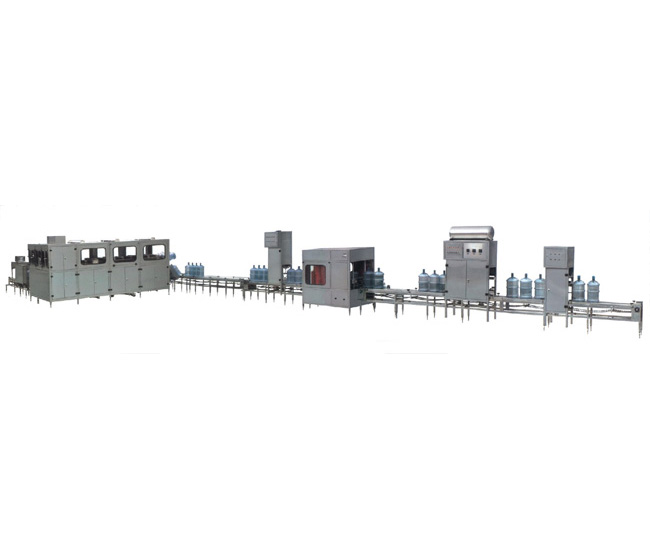

QGF series drum filling production line

It is especially used in 3 gallons, 5 gallons drum-packed pure water, washing, filling and capping. The parts touching with water adopt high-quality stainless stee. yudafu091@yeah.net

Product Details

Quick Details

Description

It is especially used in 3 gallons, 5 gallons drum-packed pure water, washing, filling and capping. The parts touching with water adopt high-quality stainless stee. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.

Machine

Model

QGF-120

QGF-240

QGF-300

QGF-400

QGF-600

Capacity
b/h

120

240

360

480

600

Filling head

1

2

3

4

5

Overall size
(mm)

3700*1600*1800

4000*1500*1800

4000*1580*1800

4000*1580*1800

5000*1850*1900

Power

Main machine
(kw)

3.8

6.8

8.8

11

11

Heating(kw)



9

10

12

12

Compressed air

Air pressure

0.6

0.6

0.6

0.6

0.6

Air consumption

0.2

0.2

0.3

0.4

0.5

Lye

Inside rinse

20s*2

20s*2

20s*2

20s*2

20s*2

Outside spray

20s*1

20s*1

20s*1

20s*1

20s*1

Circle water

Inside rinse

20s*2

20s*2

20s*2

20s*2

20s*2

Outside spray

20s*1

20s*1

20s*1

20s*1

20s*1

Sterilizing water

Inside rinse

20s*2

20s*2

20s*2

20s*2

20s*2

Outside spray

20s*1

20s*1

20s*1

20s*1

20s*1

Pure water

Inside rinse

20s*2

20s*2

20s*2

20s*2

20s*2

Outside spray

20s*1

20s*1

20s*1

20s*1

20s*1

Pure water
rinsing consumption

600

1000

1500

2000

2500



Company Profile

Suzhou City Chenyu Packing Machinery Co., Ltd. is a joint venture which is invested by Heifei Zhongchen Light-Industry Machinery Co., Ltd. and Zhangjiagang Dayu Machinery Co., Ltd. It is a professional company specializing in R & D, manufacturing, technical service and sales of beer and beverage packing machinery.

The company has been treat market as its guidance, technology as the its spigot, quality as its main line, after-sales service as the its reliable guarantee. It follows the international quality management system ISO9001: 2000, and established and perfected the quality guarantees systems which ensure the quality and performance of products. It is equipped with perfect testing and inspecting facilities, and it has high-quality technology development team and production experience, all of above ensure the advanced quality and performances of company products.
Among the products, RCGF series, CGF series, DCGF series bottle packing and QGF series barrel packing beverage production lines and QHS series beverage mixer are all designed and made on the base of importing the advanced technology from German, Italy and Japan and its technology keeps the same level as international. Also the company provides technical consultation, factory planning, installing and adjusting technological train and other services.
Now, our products are popular home and abroad, and have been sold to south-east Asia, Russia, Mideast, Africa, South America, and so on, more than 20 countries. Sincerely welcome the presence of friends all over the world.
