QGF Full Automatic Barreled Water Product Line

This filling line specially produce 3-5 gallons barreled drinking water, capacity range(barrels/hour) is:100-1200. It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing. haishiqi12@yeah.net

Product Details

Quick Details

Description

Application:

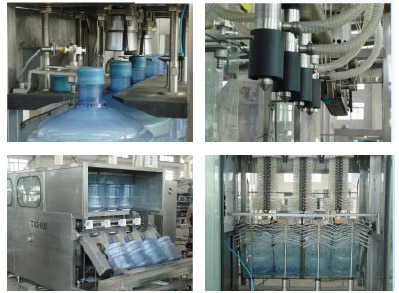

This filling line specially produce 3-5 gallons barreled drinking water, capacity range(barrels/hour) is:100-1200. It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing, liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically. This line equips with water spraying device to sterilize caps of bottles to ensure caps are aseptic and healthy, also this line can automatically feeding, washing, sterilizing, filling, capping, counting and products discharging, It is a new kind of barreled water auto-production line, which integrates mechanism, electricity and pneumatics technologies together.

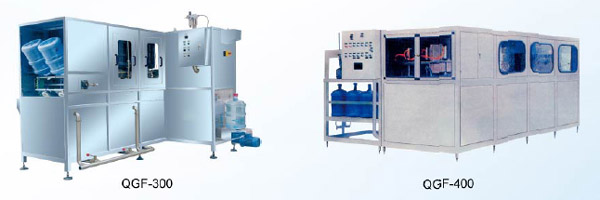

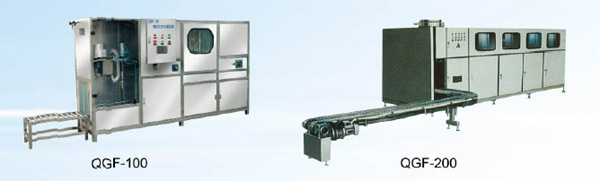

Model

QGF-100

QGF-200

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Filling heads

1

2

2-3

3

5

8

8

Volume (L)

18.9

18.9

18.9

18.9

18.9

18.9

18.9

barrel size(mm)

Φ270×490

Capacity (b/n)

100

200

300

450

600

900

1200

Gas pressure

(Mpa)

0.4-0.6

0.6

Gas consumption (m3/min)

0.37

0.37

0.6

0.8

1

1.5

1.8

Motor power (kw)

1.38

1.75

3.8

3.8

7.5

9.75

13.5

Rated Voltage (V)

380V/50HZ

Weight (kg)

680

800

1500

2100

3000

3500

4500



Company Profile

Zhangjiagang Jianwang Food Packing Machinery Co., Ltd. previously named Zhangjiagang Food Packing Machinery Factory, is specializing in researching, designing, developing and manufacturing food packing machineries. We have rich technology as support and take the lead in the designing of new products. We have the ability to produce more than 20 kinds of products of different models, which sell well in more than 20 cities, provinces and autonomous regions in China, at the same time, they are good sale in overseas markets such as Southeast Asia, Middle East and Russia.


Since the year of 1978 when it was set up, we have been producing beverage machineries and meat-packing machineries. In 1994, a new assembly line of producing negative pressure filling machine was set up and in 1996, we were awarded the permit of proportioning device production and passed the approval of proportion. In 1998,we began to produce LRGF automatic washing, filling machine, QTGF series three to five gallon barrel filling assembly line; QP-320 heavy-duty chip sutter, ZGJ series 1050 cubes cutter, etc. AII these machines have taken in the high technology from German, Italy and Japan to show the advanced world technology in the 1990’s. We have won many national patents and our products are improved in our practice. We hope that we can offer more perfect packing for your excellent products.
