  • Post Insulator

Post Insulator

It is suitable for the rebuild of city lines. It can be used effectively in the narrow corridor space, and can save the manpower and material resources. It has a good anti-bending performance and impact, and a strong ability of anti-pollution, and the good performance of prevention of brittle fracture. dalianmachine@126.com Tel:0086-411-39803728

Product Details

Quick Details Parameter

Place of Origin: : Liaoning, China (Mainland)
Brand Name: : TCI
Material: : Composite Polymer
Application: : High Temperature
Color: : Red/Brown
Certificate:: : ISO9001/ISO14001/CESI/ANSI
Port : Dalian,Shanghai

Description

dalianmachine@126.com
Tel:0086-411-39803728

Specifications

High Voltage Hot Sale Composite post insulator
1.High quality raw material
2.Senior technical person
3.Near Dalian port



High Voltage Hot Sale Composite post insulator



126Kv 10Kn Composite post insulator



Service Condition:

Ambient temperature            -40°C~+40°C

AC power supply frequency           ≤100 HZ

Earthquake intensity:                            ≤8

Altitude                                       ≤1500 m

Maximum wind velocity                  ≤35 m/s



Specifications

1.certificated by IEC ANSI GB ISO9001
2.We can design and produce according to the drawings.

3.we supply insulators with reliable quality reasonable price and good service.

4.We attend 2007 Hannover exhibition, India electricity 2008 exhibition,

2008 Hannover exhibition,2009 and 2010 Dubai Middle East electricity exhibition



Advantages of composite post insulator



Composite post Insulator is applicable for power plant installation with good performances in hydrophobicity,aging resistance,creepage tracking resistance,electrical erosion resistance and high tensional strength and bending strength.The product is high in mechanical strength,outstanding in shock resistance,quakeproof resistance and brittle fracture resistance.Also Composite post Insulator is light in weight and easy for installation.The installation dimensions are of the same with those of corresponding porcelain pin insulator and communicable with porcelain.The Composite post Insulator is free from maintemance and manual cleaning.





Material:

1. silicon rubber, composite polymer

2. glass-fiber reinforced epoxy resin rod

3. hot-dip galvanized steel


Technical Specifications



Composite post insulator

Rated voltage KV

Specified

mechanical Bending

load KN

Section

height H,mm

Minimum

arcing distance

h,mm

Large

shed diameter

D,mm

Small

shed

diameter

d,mm

Shed

spacing

B,mm

Minimum

nominal

creepage

distance

L,mm

Lighting

impulse

withstand

voltage

Wet

power

frequency

voltage

Weight

kg

126 10 1300±5 1100 192 140 51 3100 550 185 16

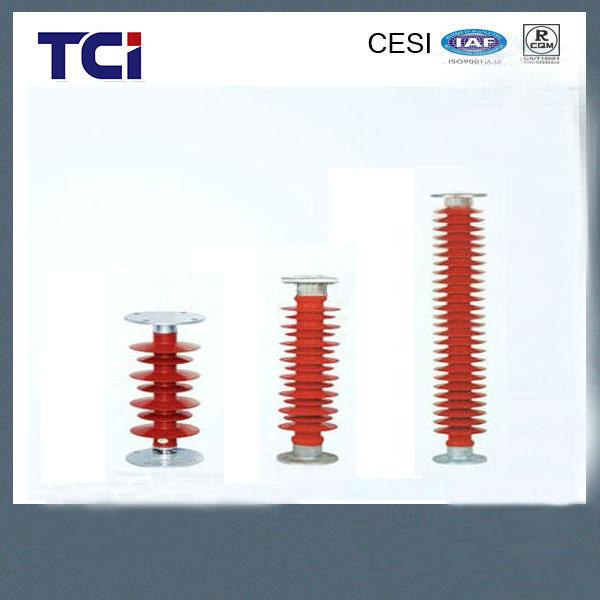

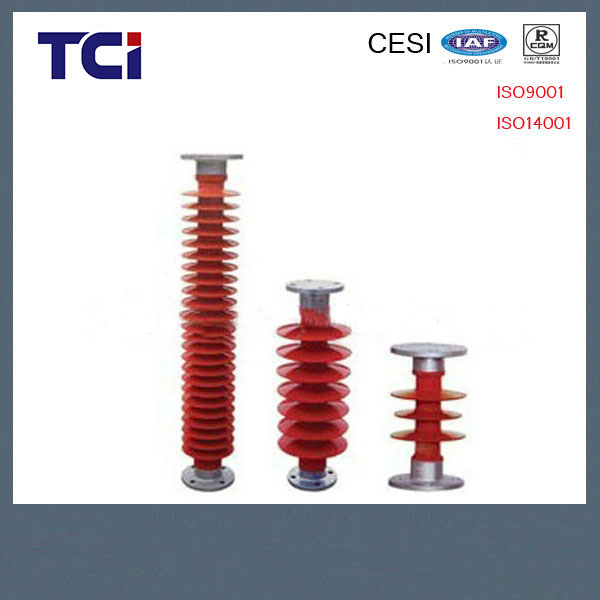

Product pictures





Packing service

















We can do better on what you can't see.







Quality is always the first for TCI.













































Certificates and test reports















Company Profile

Dalian Composite Insulator Co., Ltd. with strong researching and developing capability, mainly produces 10-500kv series composite insulators. We are a high-tech enterprise which integrates insulator design, production and sales into a whole body. Our products are all according to relative international standard and we have gotton certification of ISO9001.

Our main products are high voltage composite insulators, including long rod suspension composite insulator, pin type composite insulators, composite crossarm insulators, composite post insulators, composite bushings, and composite insulators for electric railways. Assembly products include composite arrester, cut-out and disconnecting switch.

For shed and housing moulding, we adopt international advanced method of whole moulding and whole injection. The connection zone between the core and end fitting compressed with crimping machine. The products have the haracteristic of artistic looking, small volume, light weight, uneasy broken, high bending and torsion strength, good anti-explosive performance, easy transportation and installation.

We adopt un-puncture design to ensure its safe operation. Reliable structure to make the core safe and reinforce the mechanical strength. Our product are especially suitable to high polluted areas, high mechanical tensile load, long span and compact lines.

Our advanced management system, excellent engineer team, international standard equipment and complete test technique lay us a solid foundation for development and production of new items.

If you are interested in cooperating with us, please contact us for more information. We hope we can establish a sound business relationship with you, and we will strive to meet all your business and product needs.
