  • Plaster Machine SP40

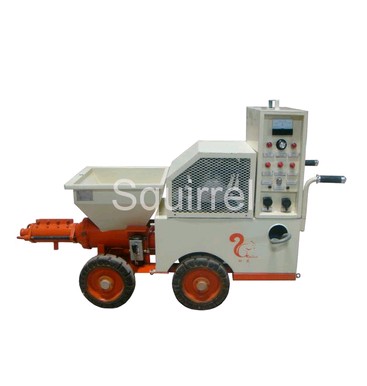

Plaster Machine SP40

The plaster machine is used for internal and external wall surface mortar coating, fire-proofing coating, spraying putty, latex paint, powder paint, waterproofing material, refractories, preservatives and different kinds of ready-mixed mortar including masonry mortar, self-leveling mortar, thermal mortar, strengthening-repairing mortar, binding mortar, cement mortar, lime mortar.

Product Details

Quick Details

Description

New Name

SP10

SP20

SP30

SP40

SP50

Old Name

GLP-1





GLP-3A

GLP-3II

Power Supply

220V/Single/Three-phase, 380V/Three-phase, 50HZ/60HZ

220V/380V Three-phase, 50HZ/60HZ

Main Power

Variable frequency 1.5kw

Variable-frequency 2.2kw

Variable-frequency 3.7kw

Variable-frequency 5.5kw

7.5kw

Rate of Flow

10L/min

20L/min

30L/min

40L/min

50L/min

Horizontal Delivery

30m

50m

50m

50m

50m

Vertical Delivery

10m

15m

15m

15m

15m

Max Aggregate

≤4mm

≤4mm

≤6mm

≤7mm

≤7mm

Bucket Capacity

25L

60L

60L

50L

50L

Hose

Φ25mm/10m

Φ25mm/10m

Φ32mm/10m

Φ32mm/10m

Φ32mm/10m

Weight

130KG

150KG

160KG

280KG

300KG

Packing Dimension

950*600*1000mm

1100*800*1100mm

1100*800*1100mm

1700*600*1100mm

1650*600*900mm

Air Compressor

2.2kw

2.2kw

2.2kw

1.5kw

1.5kw

 Gas Production

360L/min

360L/min

360L/min

220/L/min

220L/min


The plaster machine is used for internal and external wall surface mortar coating, fire-proofing coating, spraying putty, latex paint, powder paint, waterproofing material, refractories, preservatives and different kinds of ready-mixed mortar including masonry mortar, self-leveling mortar, thermal mortar, strengthening-repairing mortar, binding mortar, cement mortar, lime mortar. This type is especially good at spraying mortar, fire-proofing material.

Plaster Machine SP40

Main Features of The plaster machine:
1. Spraying, Slip casting Promixing dry mortar are availabe;
2.Integration of pumping, plastering and grouting;
3.Reliable&Compact Module Design, so the machine can be easily splitted into 3 parts for easy transportaion;
4.Feeding Height Adjustable between 85-101cm;
5.Spray gun and Shaft can be spinned freely;
6.Continuous Feeding, no pulse
