• Piston Refrigeration Compressor Unit

Piston Refrigeration Compressor Unit

FOB Price: US $19,500 - 130,000 / Set

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10 Set/Sets per Month

Payment Terms:     L/C,T/T

Port:  Dalian

Product Details

Quick Details Parameter

Brand Name: : BINGSHAN
Place of Origin: : Dalian(Mainland)
Type: : compressor condensing unit
After-sales Service Provided: : Overseas third-party support available
Certification: : ISO9001:2008 , QS,CCC
The maximum discharge pressure Mpa ; : ≤ 1.5

Description

Piston refrigeration compressor unit: Experiencing more than 40 years of experience and improvement, Bingshan piston refrigeration compressor is reputed as better efficiency, low running cost and easy operation and convenient maintenance.


1. Features:



1) Introdution

Developed technology, compact dimensions

Small volume and space

High precision machining to ensure the compressor confirm with the standard

CNC processing center

Concentricity due to specific processing technology

Minimal dead space

Steady operation, small vibration and low noise

Excellent stability

Refrigerant like R22 and R404 are adopted to protect the environment

For mid&low temperature application

Electrical motor protect device

PTC sensor

Wear resistant driver gear

Chrome plated piston rings and aluminum pistons

Hardened crank-shaft

Low friction bearing set

Efficient valve plate design, high refrigerating capacity and low energy consumption

Efficient compression rate

Valve reed made of imported impact resistant spring steel

General spare parts, convenient for maintenance



2)Wide range of application

   The Compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.



3)Excellent performance

   The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.



4)Reliable safety device

  The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.



2.Accessories of YEMOO Condensing unit:



Note: Our connecting welding rod is using Harris imported from USA. Other spare parts can based on the customer's requests.

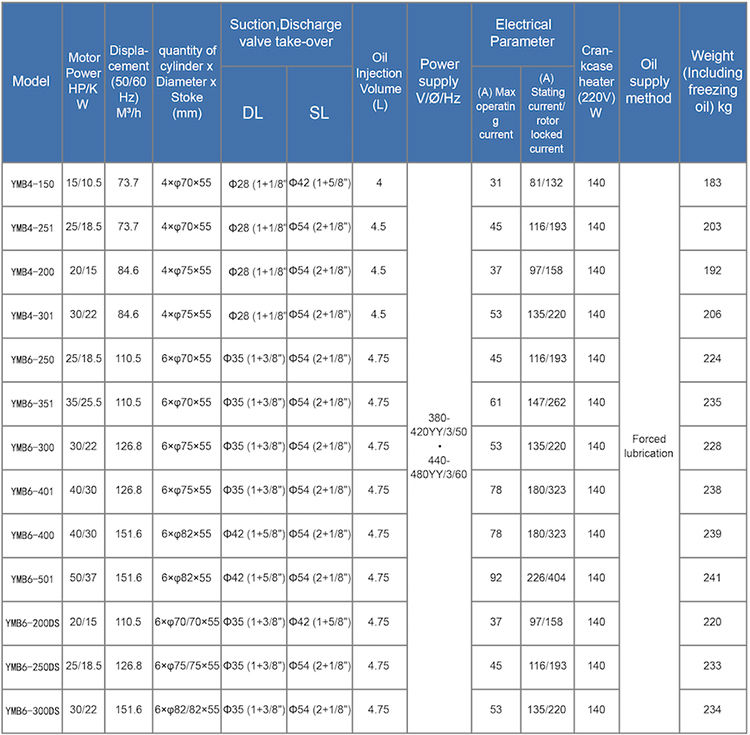

Technical Data



Refrigerant Gas   R22 Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40
YMB4-251 30 99300 91200 83600 76500 63700 52600 42950 34650 27500 21400 16260
40 89700 82300 75400 68900 57300 47150 38350 30800 24250 18670 13940
50 80500 73800 67600 61700 51100 41950 33950 27050 21100 16030
YMB4-200 30           60000 48950 39500 31400 24500 18940 13920 9670
40           53700 43700 35100 27750 21500 16080 11430 7530
50           47800 38750 30950 24200 18350 13390 9230 5790
YMB4-301 30 114200 104800 96000 87800 73100 60400 49300 39800 31650 24700 18840
40 103000 94500 86500 79100 65700 54000 44000 35350 27950 21650 16330
50 92300 84600 77400 70700 58600 48100 39000 31200 24500 18810



Refrigerant Gas R404A/R507A Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
YMB4-251 30 90700 83200 69700 57900 47750 38950 31350 24800 19210 14460 10460
40 77400 71000 59500 49400 40650 33000 26450 20800 15930 11800 8320
50 64500 59100 49500 41000 33600 27200 21600 16830 12740 9260 6340
YMB4-200 30       67100 55500 45400 36750 29350 23000 17600 13060 9260
40       57200 47300 38700 31200 24800 19250 14540 10540 7160
50         38750 31650 25450 20100 15480 11510 8120
YMB4-301 30 103800 95300 79900 66500 54900 44900 36250 28800 22450 17040 12480
40 89100 81800 68600 57000 47000 38250 30700 24200 18610 13860 9850
50 74300 68200 57100 47400 38900 31500 25100 19580 14840 10810 7410



Yemoo 30HP semi-hermetic piston refrigeration compressor manufacturers condensing unit for cold room for sale



 Yemoo 30HP semi-hermetic piston refrigeration compressor manufacturers condensing unit for cold room for sale





Company Profile

Dalian Bingshan Group (it is called Bingshan Group below) located in the beautiful seaside city-Dalian. Bingshan Group is the biggest manufacturer and contractor of refrigeration and air-conditioning facilities, agricultural deep processing refrigeration facilities and one of primary manufacture bases of petrochemical General Machinery facilities in China.

At present, in Bingshan Group, there are 43 enterprises, which include 1 public company, 9 subsidiary enterprises (domestically funded enterprises), and 32 Sino-foreign joint ventures. Bingshan Group has total assets of 9.5 billion RMB and 12000 contracted employees. The turnover in 2011 was 1.75 billion USD.

Dalian Bingshan Group Import & Export Co., Ltd, founded in 1988, is the professional import and export trading company in Bingshan Group. Relying on Bingshan Group, Dalian Bingshan Group Import & Export Co., Ltd combines the refrigeration technology, engineering and trading successfully and set up more than 100 turn-key refrigeration projects in Southeast Asia, Africa and America. In the sea food processing field and fruit & vegetable processing field, Dalian Bingshan Group Import & Export Co., Ltd. accumulated rich experience to supply complete service including before sales, during sales and after sales, and prepare the sufficient spare parts stock in different countries. Bingshan brand is awarded as the unique famous brand in the refrigeration and air-conditioning industry of China, and also the Famous Export Brand nominated by the National Commercial Ministry. In 2005, Bingshan Brand screw refrigeration compressor was appraised as the first batch of China famous brand product by China Refrigeration Industry.

Primary Export Products:
Whole set of industry refrigeration facilities, agricultural deep processing refrigeration facilities, whole set of food circulation field freezing and chilling facilities, whole set of central air-conditioning facilities, and whole set of petrochemical facilities;
Pistons and Screw refrigeration compressor units;
Screws/piston Chillers and Heat pump units;
Spiral freezers, Contact freezers and tunnel freezers;
Block ice, tube ice and flake ice;
Prefab cold storage and Concrete cold storage;
Fan coils, Air handling units and Air terminal products;
Air coolers, Cooling towers, Evaporative condensers, etc.;
OEM business for Heat Exchangers, Grey and Ductile iron casting.

Primary Import Products:
Solenoid valves, accessory components for the refrigeration system and grain packages, etc.

Dalian Bingshan Group Import & Export Co., Ltd is committed to creating comfortable and clean environment for the humankind.
