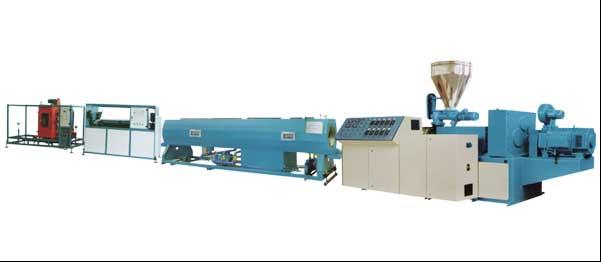

PVC Pipe Production Line

GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness. jiangyanmei081@163.com

Product Details

Quick Details

Description

Characteristics of the equipment
GF series plastic pipe material production line is mainly used in the area of
agricultural water supply system, architectural water supply system, pavement
of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and
wall thickness. This machine group consists mainly of twin conical (parallel)
screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving
motor have applied excellent products. The drawing machine includes two-claw
type, three-claw type, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally
applied with length measuring meter and thickness increasing device, the property
 of machine group is reliable, the production efficiency is high. With special
device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core
layer bulpo pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core
 pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic computer digital control, it has such
 advantages of simple operation, reliable property, etc. It has reached world
advanced level.

Extruder Model

RMSG-45/90

RMSG-51/105

RMSG-65/132

RMSG-80/156

RMSG-92/188

Pipe Size/mm

Ф20-63

Ф75-160

Ф110-250

Ф200-400

Ф315-630

Size Calibration Means

Vacuum



Hauling Speed(m/min)

12

5

3.6

2.3

0.8

Main technical data for pipe extrusion



Specification

GF63

GF110

GF160

GF250

GF400

GF630

GF800

Item

Diameter
16-63

Diameter 16-110

Diameter
32-160

Diameter63-250

Diameter
160-400

Diameter
315-630

Diameter
450-800

Diameter of pipe material (mm)

Diameter
16-63

Diameter
16-110

Diameter
32-160

Diameter
63-250

Diameter
160-400

Diameter
315-630

Diameter
450-800

Claw number of drawing machine

2

2

2

3

4

6

8

Pulling force(KN)

6

8

11

20

30

40

50

Drawing speed
(m/s)

15

12

8

9

4

2

2

Tatal power of auxiliary machine(Kw)

14

14

14

21.5

41

56

64
