PP biaxial geogrid machine, plastic machiery

PP biaxial geogrid machine, plastic machiery
width of uniaxial:3000mm
width of biaxial:4~6m
geogrid


Product Details

Quick Details Parameter

Application : geogrid machine
Plastic Processed : PP
Screw Design : Single-screw
Automatic Grade : automatic geogrid machine
Voltage : 380V or depends on requirement
Power(W) : 960~1180kW (except boiler)
Dimension(L*W*H) : 100000*8000*6000mm
width : 3000mm~6000mm geogrid machine
production capacity : 500~650kg/h
Aperture size : 39~65mm
screw diameter : 160/180/200mm
Raw material : PE/PP
Stretching strenght : 10 20 30 40 45 050 55kN

Description

Geogrid machine introduction



 Specification

Technical parameter

Uniaxial product

 Width

1000-3000mm

 Production capacity

350-400kg/h

 Power capacity

960kW( boiler not include) )

 Outside dimension

110000×8000×6000mm





 Specification

Technical parameter

Biaxial product

 Width

4000mm

6000mm

 Production capacity

300-400kg/h

350-450kg/h

 Power capacity

960kW(boiler not include)

1180kW( boiler not include)

 Outside dimension

110000×8000×6000mm



 Product introduction



The uniaxial geogrid is formed by extruding the macromolecule polymer into sheet, and punching the sheet into regular net, then stretching the net longitudinally. This process makes the polymer into a state of linear orientation, and forms long oval-shape integral net structure with uniformly distributed nodes of high strength. Such structures possess very high tensile strength and tensile modulus, and provide an ideal chain system for bearing and spreading the force in the soil. It is a kind of reinforcement material widely used currently.

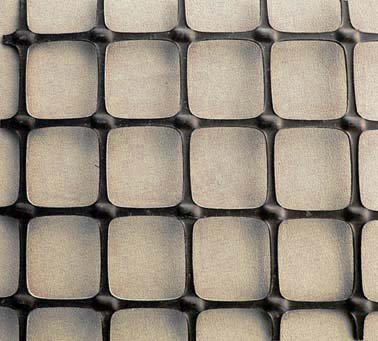

 The biaxial geogrid is made of macromolecule polymer through extrusion, sheet forming, holes punching, and stretching both longitudinal and transverse. This kind of material exhibits great tensile strength at both longitudinal and transverse directions, such a structure can also provide an ideal chain system for bearing and spreading the force in the soil, which is suitable for permanent reinforcement of large-area foundation.



Applications



The geogrid product is suitable for reinforcement of embankment, subgrade, slope and tunnel wall, and reinforcement of permanent foundation, such as large airport, parking lot, dock, and so on.





1. Increase the bearing capacity of the road (ground), and prolong the    service life of the road (ground).



2. Protect the road (ground) surface from subsiding or cracking, and keep the road (ground) beautiful and neat.



3. It is convenient for construction, which can save time and labour force, and reduce the maintenance cost.



4. Protect the culvert from cracking.



5. Enhance the slope, and prevent soil erosion.



6. Reduce cushion thickness, and save cost.



7. Keep the stability of the slope of grass mat for green environment.



8. Replace metal net to be used as the top net in the coal mine.








Company Profile

 Dalian Plastics Research Institute Co., Ltd. is a high-tech materials science into new joint-stock enterprise integrating technology development, technology transfer, production and sales. Founded in 1965, Dalian Plastics Research Institute in 2005 by restructuring. The company has experienced, high-quality production and management personnel and modernization of the plant, equipped with advanced manufacturing and testing equipment, is China's plastics industry to establish the earliest, largest and strongest technical Institute of Plastics Processing and Applications one, but also the China Plastics Processing Industry Association member units, the China light Industry Machinery Association member units, China geosynthetics Engineering Association member units.

   Has undertaken a national, ministerial, provincial and municipal scientific research projects of more than 160 items for all levels of more than 80 scientific research awards each year to fill the gaps in the research and development of new products and new technology successfully. A lot of research to achieve the industry, its product quality has reached or exceeded the level of similar products at home and abroad and exported to Saudi Arabia, Brazil, Canada, Iran, Indonesia, Algeria, Russia and other countries for domestic and foreign user to create a good economic benefits.

Company under the R & D department, business department, the detection unit, "Plastics Technology" magazine, machine shop, pilot plant and other departments. We can provide enterprises with plastics new products, new technology development and cooperation, as well as plastic products, performance testing, quality arbitration and related standard-setting, plastic processing and application of domestic and international information consulting and technical achievements transfer and technical collaboration. Companies adhering to the "Lean techniques, faith for the Seoul" business philosophy, dedicated to provide our customers with quality services.
