  • PE/PEX Jaw Crusher

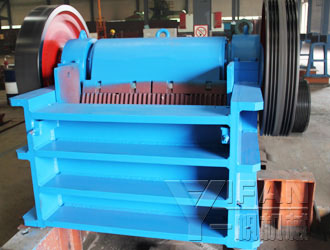

PE/PEX Jaw Crusher

PE Series Jaw Crushers is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The PE Series Jaw Crushers is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry. made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function. PE.PEX Series Single Toggle Jaw Crusher has the features of great crushing ratio, uniform sizes of promance. It can be used to crush material its compressive resistance not more than 320 MPa. It is widely used in various industries, such as mining, smelting, road and railway construction and chemical industry etc. PE Series is used to primary crushing; PEX series is used in secondary crushing and fine crushing. naijiaxin11@yeah.net

Product Details

Quick Details

Description

PE Series Jaw Crushers is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The PE Series Jaw Crushers is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry. made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function. PE.PEX Series Single Toggle Jaw Crusher has the features of great crushing ratio, uniform sizes of promance. It can be used to crush material its compressive resistance not more than 320 MPa. It is widely used in various industries, such as mining, smelting, road and railway construction and chemical industry etc. PE Series is used to primary crushing; PEX series is used in secondary crushing and fine crushing.
This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.

1.simple structure,convenient maintenance;stable performance,low operating costs;crushing ratio

2.crushing chamber depth and no dead zone,increased capacity and output feed

3.The crushing ratio,uniform particle size

4.Gasket nesting population adjustment device,reliable and convenient adjustment range,increase the flexibility of the device

5.lubrication system safe and reliable,easy to replace parts,maintenance workload is small

6.simple structure,reliable operation,low operating costs

7.saving equipment:stand-alone energy-saving 15% to 30%,saving more than double the system

8.nesting population adjustment range,to meet the requirements of different users

9.Low noise,less dust.

Model

Size of Feed Opening(mm)

Max Feed Size (mm)

Discharge Range Opening (mm)

Capacity (m3/h )

Motor Powerkw

Weightt

PE-400×600

400×600

340

40-100

10-40

30

6.5

PE-500×750

500×750

425

50-100

28.5-62.5

55

10.8

PE-600×900

600×900

500

65-160

30-75

55- 75

15

PE-750×1060

750×1060

630

80-200

80-160

90-110

28.9

PE-870×1060

870×1060

750

170-270

145-235

90-110

29.5

PE-900×1200

900×1200

750

100-200

100-240

110-132

49

PE-1000×1200

1000×1200

850

200-280

190-275

110-132

51

PE-1200×1500

1200×1500

1020

150-300

250-500

200

88.5

PEX-150×750

150×750

120

10-40

5-16

15

2.5

PEX-250×1000

250×1000

210

25-60

10-30

30-37

6.6

PEX-250×1200

250×1200

210

25-60

10-31.5

37

7

PEX-300×1300

300×1300

250

20-90

12.5-53

75

12
