• Oil Heater Element

Oil Heater Element

Oil Heater Element 1. Small size, light weight and energy-saving 2. Rapid heating 3. Superior voltage resistan and electrical resistance

Product Details

Quick Details Parameter

Place of Origin: : China
Brand Name: : 4U
Type: : Electrothermal Ceramics
Material: : Alumina
Shape: : Rectangular
Certification: : RoHS, SGS
Heating Material: : Tungsten

Description


Oil Heater Element

Model NO.:
G50310270
Dimensions
Length: 50.0±0.1mm
Out-Diameter: 31.7±0.1mm
In-Diameter: 27±0.1mm
Operation voltage:
≤220V
Operation wattage:
≤1000W
Operation temperature:
<900°C
Guarantee:
1 Year
Main material:
96% Al2O3


Oil Heater Element

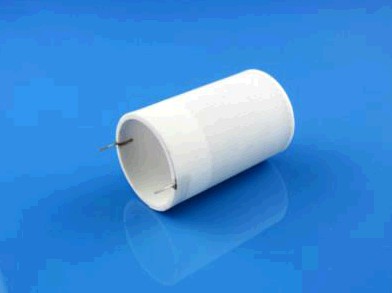

bigger pic


Close looking

close looking


Drawing

Drawing

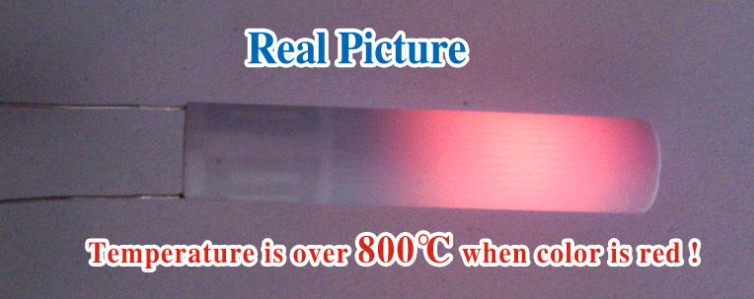

Real Example

real example

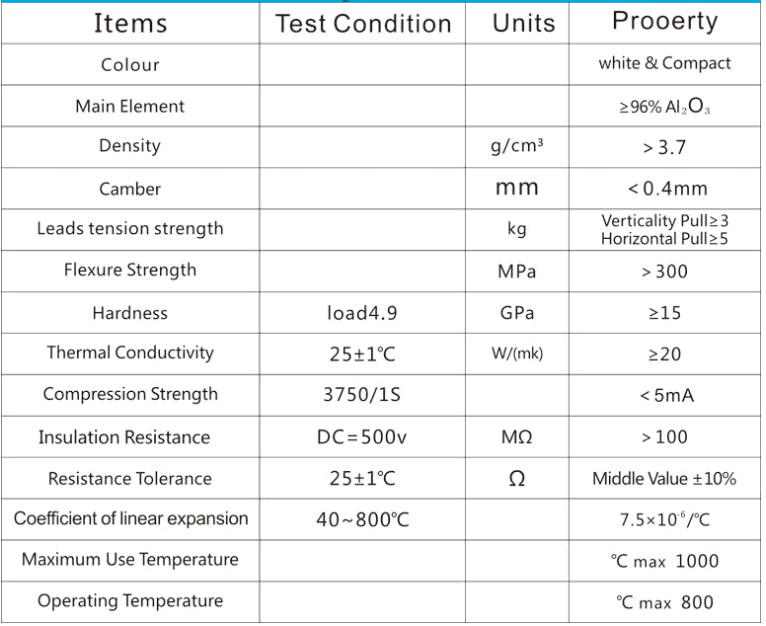

Detailed Chart

detailed chart

Company Profile


huiyou long logo

Zhuhai Huiyou Electronic Co., Ltd Lies in Zhuhai, a coastal city in south of China's Guangdong Province. The company is one of the major electric ceramic producers in China, specializes in the research and development and manufacture of ceramic heaters with most varieties in China and introducing production, testing and monitoring equipment advanced at home and abroad. Our company owns the large assembly line and sintering, brazing, slicing and milling equipment advanced in the world and employ strict procedure of routine test and random sampling and are equipped with well developed quality inspection equipment to control product quality at each stage.

Huiyou heating element always takes the lead in the trade. We have achieved many outstanding accomplishments, accumulated profound cultural deposits and integrated the advanced business concepts and management mechanisms for the new production technology and advanced equipment, it was identified the strict inspection according to SGS and RoHS to ensure lead the domestic industry in product quality, technical merit and service level.

Our ceramic heater is made by printing resistance slurry into the alumina raw ceramic pieces, then burn it under 1700 degree and get the nickel lead wire welded. In this way, the product comes to be a medium low temperature heating element, serving as a new product replacing heating alloy and PTC heating element heating element. It's widely used for medium and low temperature heating in agricultural technology, communication, Medicare and routine life, such as ventilator, heater, heating auxiliary to air-conditioner, industrial drier, air dryer, electric heating splint, electric iron, direct/curving hair iron, vacuum flask, electric cooker, water heater, industrial drier, electric bonder, capper, UTR cylinder condensation-proofer, IR physiotherapy equipment, intravenous injection heating, quick food backing, mini thermostatic bath for special crystal parts. etc

Our ceramic heater is available in alumina and has many excellent features that do not exist in the sheath heaters.
1. Compact and Light Weight and Energy-saving
High watt density, Good thermal efficiency.
Lying of multiple heating elements per unit is available.
2. Superior Thermal Properties
Rapid Heat Increase.
Custom designed temperature distribution available.
High levels of insulation allow direct contact with water, kerosene and metal.
3. High Reliability
Superior dielectric strength and electrical insulation.
Longer life due to oxidation-proof design on receptivity material.
Superior chemical resistance.
4. No electric noise, white, tidiness, non-rust, non-pollution, non-rupture, no weak soldering.
