• Numerical control lathe, ck6150

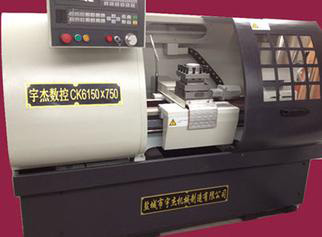

Numerical control lathe, ck6150

This machine can turning cylindrical surface, conical surface, spherical surface, circular surface, face, cutting Please contact:haishiqi12@yeah.net

Product Details

Quick Details

Description

tems

Specifications
CK6150×650/1000/1500
Max.swing over bed

500mm
Max.swing over carriage

295mm
Max.length of workpiece

650mm/1000mm/1500mm
Range of spindle speed

50-1600rpm
Spindle bore

52mm/80mm
Spindle taper

MT6
Taper of tool carrier

4/6/8stations
(or gang-type tool carriage)
Min.setting unit of motor
(Z)cross
0.001mm
(Servo/stepper)
(X)long
0.001mm
Movingspeed of post
(Z)cross
8m/min
(Servo/stepper)
(X)long
6m/min
Taper of Tailstock quill

MT4(6)
Max.range of tailstock quill

120mm
Motor power(mm)

5.5/7.5KW
Packing size(mm)
L/W/H
2170/2420/2920×1540×1950mm
Net weight

1700kg/1900/2200kg
