Mini circuit breaker

The mini circuit breakers are with highly safe, strong breaking capacity, fast movement, and good reliability, long service life, which are suitable for industrial, commercial, and residential buildings and other places. Please contact us! Email:liujing@mec.com.cn

Product Details

Quick Details

Description

Email: liujing@mec.com.cn
Skype:liujingmec


Description

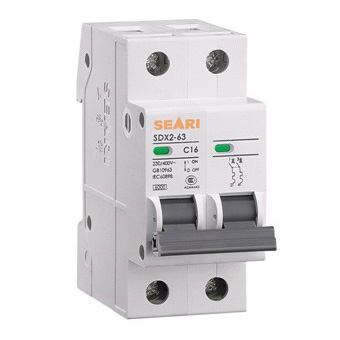

SDX2-63 series mini circuit breakers are suitable for 50Hz, rated voltage 230V/400V, rated current 1A-63A and used for electrical equipment overload and short circuit protection. The mini circuit breakers are with highly safe, strong breaking capacity, fast movement, and good reliability, long service life, which are suitable for industrial, commercial, and residential buildings and other places.
Standards
GB10963
IEC 60898
Technical specifications
Rated current
lnm(A)
Pole
Neutral
Frequency
Hz
Rated voltage
V
Rated current
A

Rated operating short-circuit current (lcs)
instantaneous tripping
Breaking current (A)
cosφ
63
1

50
230230/400
135
6
1016
20
25
32
40
6000
0.65-0.7
C.D
1
N
230
2

230400
3

400
4

1

50
230230/400
5063
4500
0.75-0.8
C.D
1
N
230
2

230400
3

400
4


Company Profile

We specialize in the production of primary power equipment, including metal oxide surge arrester(MOA), polymer housed metal oxide arrester for transmissionlines, metal oxide varistor,on-line monitors for surge arrester and surge arrester monitor and so on.
After 30years technical innovation and industrial transformation, we have yearly production capacity for 4.5 million pieces ofΦ32-128metal oxide varistor (MOV), 0.5 million sets of 0.22-1000KV metal oxide surge arrester.
Our main products have passed ISO9001 quality management system certificate, ISO14001 environment management system certificate, OHS18001 occupational health and safty management system certificate and KEMA Netherland certificate.
Our arrester market share reaches above 32% in China market, especially 500KV surge arrester bid winning rate in the scale bidding of state grid corporation of China in the lastest three years, was the top one during the same industry in China.
