  • Micro Switch MX12-10 250V

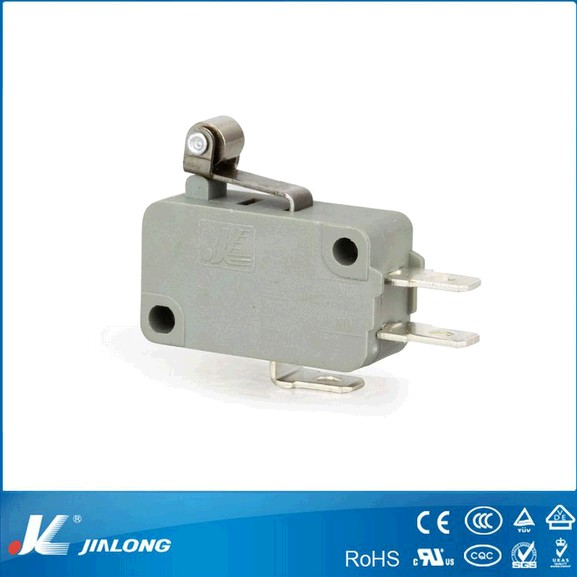

Micro Switch MX12-10 250V

Micro Switch MX12-10 250v. 1.Rating: 2A 24V DC 3A-20A 125V/250V AC 2.Lifespan:50,000-100,000 Cycles

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : JL
Model Number: : MX12-10
Max. Current: : 20A Max.
Voltage: : 250V
Operating Temperature: : Thermostatic
Protection Level: : Safety
Item No: : MX12-10
Color: : Decided by customer
MOQ: : 1000pcs,it's negotiable
Monthly production capacity: : 30 million pieces

Description


Micro Switch MX12-10 250V

Color
decided by customer
Rated working voltage & current
2A 24V C
3A-20A 125V/250V AC
Contact Resistance
≤30mΩ
Withstand Voltage
1500Vac
Insulation Resistance
≥100MΩ
Switching Life
50000-100000 cycles
Environmental humidity
45%-95%
Environmental temperature
-25- +85°C
MOQ
1,000pcs, it’s negotiable
Monthly production capacity
30 million pieces
Certification
 UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC
PS: 1.We can offer free samples with shipping and taxes pay by the buyer.
    2. Various operation force, height, and color for your choice.
    3. The discount depends on your order quantity.
    4. More than 2,000 models of switches and sockets.


Micro Switch MX12-10 250V

Micro Switch MX12-10 250V
