• MS IEC Standard Induction Electric Motor 2B3 small powerful electric motor

MS IEC Standard Induction Electric Motor 2B3 small powerful electric motor

Small Powerful Electric Motor . MS series IEC standard three phase motor. Could be design two speeds(2/4 pole); Please contact us:wangyuhua0321@163.com

Product Details

Quick Details

Description

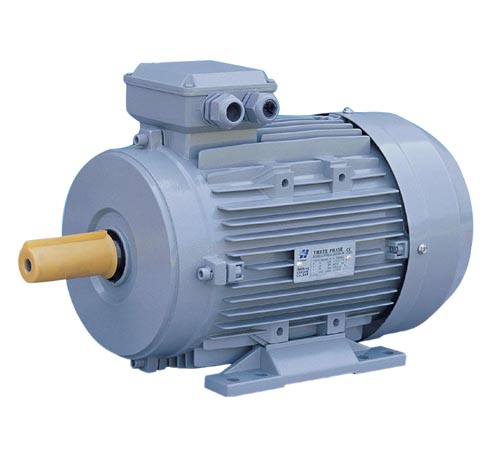

Three Phase Electric Motor.

MS series three phase induction motors can be used in commercial, industrial, building
service, water treatment and agricultural fields where superior quality and reliability are demanded.
Features:

1) Utilizes IP55 enclosures, IP54 on request ;

2) Multiple feet locations( B3, B14, B5, B35 on request);

3) Aluminum frame, end shields and base;

4) High strength cable gland;

5) Shaft key and protector supplied;

6) Superior paint finish;

7) Motors are made to heavy duty service factors;

8) Can be made with stainless steel shaft;

9) Motors made for continuous S1 duty;

10) Utilizes vacuum impregnated Class B insulation;

11) Class F insulation on request;

12) High performance and efficiency( IE2, IE1, Normal efficiency are on request);

Advantages:;

1) Water, dust and vermin resistant;

2) Quiet operation;

3) Electricity saving;

4) Easy installation (bolt on feet or brackets as required);

5) Corrosion resistant;

6) Bearing( Different Brand Bearing On Request SKF√, TPI√, NTN√, C&U√ );

7) Superior life;

8) Reliable in country, city or factory environments


Model

Power

Voltage (V)

Current (A)

Speed (r.p.m)

EFF. (%)

Power factor

Locked rotor torque

Max. torque

Starting current

Net weight (kg)



Rated torque

Rated torque

Rated current



HP

KW



MS561-2

0.12

0.09

230/400

0.55/0.32

2800

62

0.68

2.3

2.4

6

4.6



MS562-2

0.16

0.12

230/400

0.64/0.36

2800

67

0.71

2.3

2.4

6

4.8



MS631-2

0.25

0.18

230/400

0.87/0.51

2800

69

0.75

2.2

2.4

6

5



MS632-2

0.34

0.25

230/400

1.12/1.61

2800

72

0.78

2.2

2.4

6

5.3



MS711-2

0.5

0.37

230/400

1.58/0.91

2800

73.5

0.80

2.2

2.4

6

6.5



MS712-2

0.75

0.55

230/400

2.23/1.29

2800

75.5

0.82

2.2

2.4

6

7



Company Profile

福建惠丰电机有限公司,成立于1989年,主要是研制及生产中小型单、三相交流异步电动机和水泵,公司通过ISO9001质量体系认证,产品通过CE、 ROHS等欧盟相关指令和认证,产品大多出口到欧美及东南亚,公司还是海关的一类企业,产品检验检疫绿色通道企业,今年产值将超过1.5亿,现因为欧美国 家实行节能减排,要使用高效和超高效电动机和水泵。
