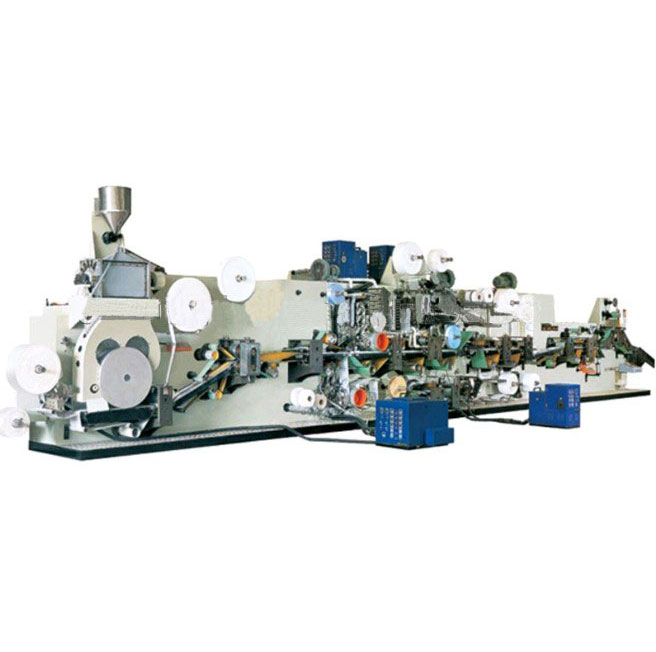

• MH-3Y Semi -automatic Baby Diaper Machine / baby diaper making mahine

MH-3Y Semi -automatic Baby Diaper Machine / baby diaper making mahine

The MH-3Y Semi -automatic Baby Diaper Machine / baby diaper making mahine(CE Certificate) is able to produce four specification (S.M.L.XL) baby products by changing cutting tools.

Product Details

Quick Details Parameter

Power supply: : 380V 50HZ
Installation capacity: : 60KW
Designed production speed: : 300 pcs/min
Stable production speed: : 200-250 pcs/min
Machine dimension: : 17×1.5×2.8m (L×W×H)
Weight: : 17T

Description


1. The machine is able to produce four specification (S.M.L.XL) baby products by changing cutting tools and gear box.
2. It has the process mechanism of cotton pulp high speed muller system, drum forming, embossing, elastic waistline, frontal tape, side tape, tri-folding etc.
3. Three-piece standing cuffs on the surface to prevent side leakage.
4. The volume of S.A.P controlled by stepless regulator.
5. Phase adjusting units are used in the key sections of the equipment so that the phase can be adjusted during production without stopping machine.
6. Application of the vacuum conveying system guarantees the stress, stability and fixity of the product.
7. This machine has the features of compact structure, convenient operation and easy maintenance.
