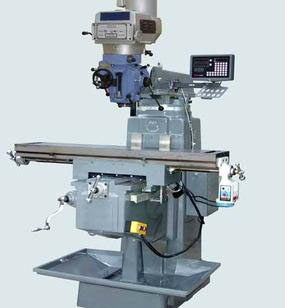

1. The machine is of excellent configuration with wide working range and small area requirement. Head swivel angles are 90°left / right and 45°front / back. Ram not only is movable in front and back direction but also can be rotated 360°horizontally to greatly extend the machine’s working range.
2. The machine body is made of SC250 Casting with good rigidity and reliability. Spindle is made of Chrome Molybdenum Steel, tempering and carburizing heat treated. Spindle is assembled with precision Ball Bearing that provides wide cutting rang and high precision.
3. X, Y and Z axes slideways are laminated with wear resistant material, Turcite-B for easy operation, minimum wear out and long durability.
4. Working Table and Slideways are treated with inductive surface hardening and precision ground for maximum wear resistance. Equipped with manual oil lubrication system for concentrative lubrication on Working Table and knee.
5. R8, NT30, NT40 Spindle Tapers are available.
