Low cost cnc plasma cutting machine from china

HyCut NC Flame Small Gantry is one kind of NC cutting metal equipment with high effectiveness,

Product Details

Quick Details

Description

     Low cost cnc plasma cutting machine from china













Brief description:



“HyCut Small Gantry ”adopt gantry style structure, flame or air plasma cutting mode, it has high automation, easy to maintain and operate, reliable performance, as well as reasonable and ingenuity machine frame, also reasonable price,especially suit to metal plate working procedure for medium-sized and small enterprises.







Specifications:



Models

HCG-ES2003

HCG-ES2503

HCG-ES3006

HCG-ES3506

HCG-ES4006

Input power source

AC 220V±10%/50/60Hz/0.5-1KW

Cutting mode

O2/C3H8 or C2H2, Plasma available

Track distance(mm)

2000

2500

3000

3500

4000

Track length(mm)

3000

3000

6000

6000

6000

Effective cutting range(mm)

1600×1800

2100×1800

2600×4800

3100×4800

3600×4800

Torch height adjustment(mm)

200

Torch and quantity

1 Flame or plasma torch,for each additional cutting torch,effectively cutting width is reduced by 200mm

Maximum number of CNC Torch

2

2

3

3

4

Cutting thickness(mm)

5-150(O2+ C3H8 or C2H2),Plasma Cutting: In term of customer’s plasma power source

Moving speed(mm/min)

0-6000

Cutting speed(mm/min)

20-2000

Drive

Rack driven:two 57 Stepper Motor(Japan shinano)+reducer,bilateral drive.Beam driven:one 57 stepper moter(Japan shinano)+reducer

CNC system

HyCut

Gas panel

1

Others

Beam down tracheal cable towling,gas valve,back to the fire prevention device assembly 180mm,cutting torh propane cutting nozzle 1,2,3, 1 Kit

Software

HyCAM

Rail base and cutting rack

Manufacturers to provide drawings,customers make it







Options:



Item

Description

Additional torch

Beam configuration two or more cutting torch, need to add wire or steel connections

Plasma arc THC

With the initial positioning and anti-collision

Flame capacitance THC

Heavth

Flame ignition

W/tempering prevention device

Straight cutting torch N

Quantity: N

Additional rack 1m

Bilateral, include support, towline, gas pipe, cable etc., interface located in the centre point of left rail

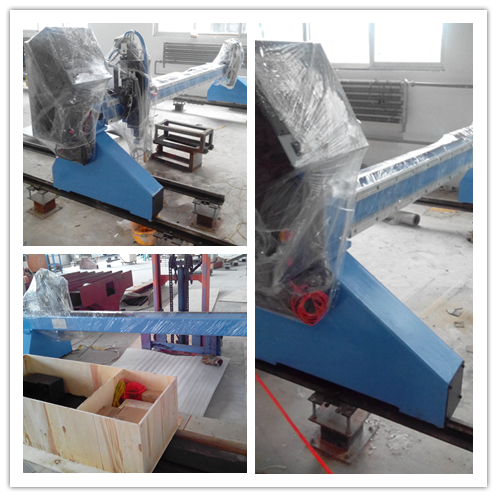

Packing show:









































Company Profile

Shenyang Hycut NC Tech. Co., Ltd is a joint venture enterprise, located in Shenyang - the centre of Northeast Industrial Base of China. Our company has scientific management concepts and advanced technology, and specializes in researching and producing portable NC cutting machines. The hard core of Hycut Portable NC Flame/Plasma Cutting Machines is designed and researched by our company with creative technology, and the performance of product has reached a higher level.

The products have characteristics of space saving, high production efficiency and facility, high cutting precision and material utility. They are well-designed, easy to be moved, and suitable for indoor and outdoor working environment, with light weight and small measurement. They can help all sized enterprises to improve production efficiency and reduce production cost. Our goods can be widely used in the working procedure of carbon steel (flame cutting), stainless steel, aluminum (plasma cutting) and other metal materials, especially for single and batch production of various parts.
