  • Linear guide way slant bed CNC lathe

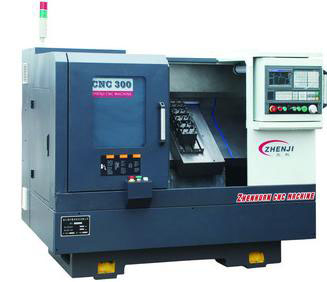

Linear guide way slant bed CNC lathe

High precise angular contact ball bearings are used as bearing of the lathe. Please contact:zhuxiaochen124@126.com

Product Details

Quick Details

Description

Max. swing diam. 300mm
Max.machining diam. 160mm
Standard machining diameter 75mm
Max.workpiece length 240mm(collet) 200mm(hydraulic chuck)
X-axis max. stroke 280mm
Z-axis max. stroke 240mm(collet) 200mm(hydraulic chuck)
Spindle diam. of through-hole 48mm / spindle unit(option)
Draw pipe diam. of through-hole 40mm / spindle unit(option)
Rapid travel speed of X, Z axis 25000mm/min, 25000mm/min
Spindle travel speed range 200-3000r/min / 200-5000r/min (option)
Ways of clamping Pneumatic clamping / chuck/hydraulic chuck(option)
Type of turret Row tool post/4-position electric turret (option)
Spindle motor power 3.0KW / 4.0KW (option)
Tailstock No
Overall dimension (LXWXH) 1750X1320X1500mm
Weight (about) 1500kg



Company Profile


It is a modern high-tech enterprise with not only scientific R&D (Research and Development), but also production-manufacturing, distribution and after-sales service. The company has been awarded the honor of "Zhejiang SME," "High-tech Industry," "Top Ten Industry in Yuhuan," "Top 50 CNC Machine Tool Manufacture in China" and "Taizhou Great Brand."
Z-MaT makes efforts to achieve leaps in the development plans by cooperating with the famous tertiary institutions and universities. The company collaborates with a high performance team of many honest-spirited senior professionals to engage in the technical developments of engineering. Focuses on product development, key technology research, manufacturing, product assembly, debugging and testing. Advanced production management concepts create a new industrial base within modern R&D and manufacturing.
In pursuit of quality and reputation, Z-MaT has introduced precision gantry grinders, machining centers, roundness measuring equipments, laser interferometers, dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments. These equipments help Z-MaT continue to pursue excellence, create first-class brands, and provide customers with high-quality "Z-MaT" machines.
After many years of innovation and R&D, Z-MaT currently has more than 40 series of CNC machine tools, such as: CJK, CK, CXK, CNC, ZXK, ZYK, VMC, etc. Meanwhile, various special machines can also be customized or designed according to the customers' needs. Its sales network is all over the world, and the company enjoys the right to import and export trade to serve the world. Z-MaT people are always insistent on the marketing policy of "Being honest and sincere".
In the future, Z-MaT will continue to focus its concentration on technological innovations and the development of new products. The best service and technology will be provided for both international and domestic customers. We sincerely expect to cooperate with you!
