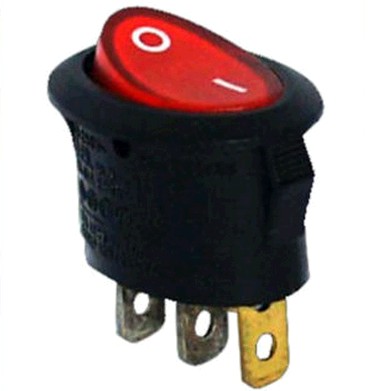

  • Lighted Rocker Switch

Lighted Rocker Switch

Lighted Rocker Switch 1.Rating: 3A-6A-15A 250V. 2.Lifespan:10,000-50,000 Cycles. 3.Contact resistance:30m max.

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : JL
Model Number: : KCD1-101A
Max. Current: : 15A
Max. Voltage: : 250V
Mechanical Life: : 10,000-50,000 Cycles
COLOR: : Red

Description


Lighted Rocker Switch

Model No: KCD1-101A

Specification

Mini Slide Switch
Specification

Rating
3A-6A-15A 250V

Contact resistance
30mΩ max

Insulation resistance
100MΩ min

Withstand Voltage
1500Vac

Lifespan
10,000-50,000Cycles.

Practical temperature range
-25 to 85 degrees Celsius

Environmental humidity
45%-95%

Certification
UL,VDE,ENEC,CSA,TUV,CE,EMC,CQC,CCC


[Warm Tips]All information above is for reference only; Particulars of all items are base on individual specification.



Regarding to our products:

More than 2,000 models of switches and sockets.
Monthly production capacity: 30 million pieces.
MOQ: 1,000pcs, it’s negotiable.
Good quality with competitive price.
We can offer free samples with shipping and taxes pay by the buyer.
Various operation force, height, and color for your choice.
The discount depends on your order quantity.


Lighted Rocker Switch

Lighted Rocker Switch
