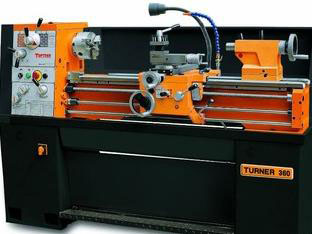

Lathe machine

1.Max.swing over bed:356mm 2.Max.swing over planker:195mm 3.max.swing inside saddle:506mm 4.Rotate speed 16 Grade 45~1800r/mi Please contact:naijiaxin11@yeah.net

Product Details

Quick Details

Description

Features
1. Lathe bed guide surface by quenching and precision grinding,
2.The spindle is supported with precision taper roller bearings;
3. Spindle gear adopts the high quality and the surface quenching andrubs processing
4. Can discharge the saddle provides greater machining range.
5. More convenient and easy operation of gear mechanisms;
6. Convenient operation of a variety of cutting knife box walk quantity for selection and car of thread.
 Standard accessories
 1. 3jaw chuck Φ200mm ;2.change gears;3.chip tray;4.reducing nipple MT5/MT3 ;5.dead center ;6.splash guard ;7.cooling system ;8.working light ;9.4-jaw chuck Φ320mm;10.face plate  Φ300mm;11.steady rest;12.follow rest ;13.foot brake
Optional accessories
1.taper accessories ;2.live center ;3.lead screw hood;4.quick-change tool holder;5.lathe tool suit
 Specifications
Model
TURNER360*1000
Max swing over bed
356mm(14”)
Max. swing over planker
195mm(8-5/8”)
max. swing inside saddle
506mm(20”)
front face plate saddle effective length
145mm(5-11/16”)
Two center distance
1000mm(40”)
Lathe body width
206mm(8”)
spindle telos
D1-4
Spindle through –hole diameter
38mm(1-1/2”)
Spindle inside-hole taper
MT5
Spindle speed range
16 Grade 45~1800r/min
Top slide travel
95mm(3-3/4”)
Cross slide travel
180mm(7”)
Maximum section of cutting tools
16mm*16mm(5/8”*5/8”)
Lead screw pitch
8TPI or 4mm
Portrait feed
0.043~0.653mm/rev(metric)or0.0012”~0.0294”/rev(English )
Traverse feed
0.027~0.413mm/rev(metric)or0.0004”~0.01”/rev(English )
Metric thread range
0.4~7mm(metric)0.45~7.5mm(English )
Inch screw thread range
4~56TPI (metric)or 4~112TPI(english)
Tailstock diameter
45mm(1-3/4”)
Tailstock travel
120mm(4-3/4”)
Tailstock inside-hole taper
MT3
Motor power
1.5/2.4kw(2/3HP)
Cooling pump
0.04kw
Outside size
1820mm*740mm*1250mm
Packing box size
1930mm*760mm*1580mm
NW/GW
850kg/950kg
