• Lathe machine CW62123C 3000 mm

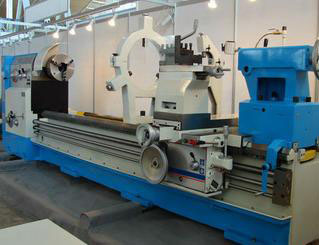

Lathe machine CW62123C 3000 mm

CE compliant, ISO9001:2001, 105mm or 130mm Spindle bore, Swing over bed 1230mm, Distance bewteen centers 3000mm Harden gear Please contact:hexiaojing523@126.com

Product Details

Quick Details

Description

Lathe machine CW62123C 3000 mm
CE standard!

MODEL

UNIT
CW62123C/3000MM


Swing over bed
mm
1230

 Swing in gap
mm
1400

 Swing over cross slide
mm
900

Distance between centers
mm
3000

 Length in gap from face plate
mm
380

Spindle nose
mm
C11 or D11

Spindle bore
mm
φ105/130(optional)

Spindle speeds
rpm/steps
10-800/18

Cross slide travel
mm
615

 Top rest travel
mm
225

 Rapid travel
mm/min
Longitudinal Axe Z: 3200
Converse Axe X: 1400

Quill diameter
mm
120

 Quill travel
mm
260

 Quill taper

MT6

 Bed width
mm
610

 Metric threads
mm/kinds
1-240/53

Inch threads
tpi/kinds
30-2/31

Module threads
mm/kinds
0.25-60/47

 Diametrical pitch threads
tpi/kinds
60-1/2/47

 Longitudinal feeds
mm/r
0.07-16.72

 Cross feeds
mm/r
0.04-9.6

 Main motor power
kw
11


 Packing size
Length
mm
5170

Width
mm
1700

Height
mm
2080

 Gross weight
kg
7500


Company Profile

In early 2004, after a series of reformation approved by our government, our company,was established as a hi-tech industrial shareholding company out of Changsha No.2 Machine Tool Works which, with 50 years experience of manufacturing lathe, was one of the works manufacturing lathes appointed by Chinese government. With an area of more than 80 mu including almost 30000 square meters of office building and workshop, our company is located in Lugu Industrial Zone, Changsha City, Hunan Province, China. Our assets are totally more than a hundred million yuan including 300 sets of equipment.

Through the hard working of nearly 50 years, we have owned multiple independent intellectual property rights and formed the production pattern of many series & many varieties. We mainly work on developing numerical control series and also produce the universal lathe series. At present, our main products are "Jinling" XK7132, XK7135 CNC milling machine series, XH715, XH716, XH7132, XH7135 machining center series, "Jinling" CK360, CK430, CK630, CKB612123 CNC lathes series, "Jinling" CW61/263C, CW61/2103C, CJ, CX series universal and gap bed lathes, and "Jinling" camshaft CNC grinding machines. The "Jinling" family is all of first-grade quality with reliable performance.

We have already obtained the independent right export of products and won a developing sales network of domestic and international markets. Our products also find a good sale in South Africa, Southeast Asia, Europe, the Middle East, and America. For decades, we have gained the trust of customers by fine performance, high-quality and good after-sale service.

There are hundreds of staff members in our company today and some of them are well known in the field of lathe manufacturing. They compose our powerful research and development team. Supported by the team and advanced technology, we can guarantee the quality of products, and the speed of development and advancing of technology. Under the leadership of board of directors, all staff of our company, based on the principle of "developing national industry, serving customer and society heart and soul", are making efforts to pursue the brighter future with the management concept "based on honesty, developing on science and technology to win the market with quality products and efficient management". Now, a harmonious, innovative, positive and progressive enterprise culture is coming into being in our company.

Geographically our company enjoys advantageous position and convenient transportation, close to Beijing-Guangzhou railway, Beijing-Zhuhai expressway and national highways. You are warmly welcome to visit our company for business opportunity in the future.

Our purpose: developing national industry, offering best service to customers around the world. Our concept: being honest in business and efficient in management, developing technology, pursuing top quality
