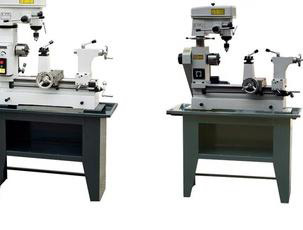

Lathe, Mill and Drill machine HQ400

1. Very practical machine for turning / milling / drilling 2. Easy tooling change-over from turning to drilling and milling. Please contact:wangxun124@163.com

Product Details

Quick Details

Description

1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel.

6. HQ400V and HQ400V/1 is supplied variable speed based on HQ400 and HQ400/1



MODEL

HQ400(HQ400/1)

HQ400V(HQ400/1V)

TURNING

Swing over bed

420mm

420mm

Distance between centers

400mm

400mm

Max. longitudinal travel

380mm

380mm

Max. cross travel

120mm

120mm

Taper of spindle

M.T.3

M.T.3

Spindle hole

φ20mm

φ20mm

Step of spindle speed

3



Range of spindle speed

500,900,1600r.p.m

0-600 r.p.m,600-1800 r.p.m

Barrel travel

70mm

70mm

Taper of center

M.T.3

M.T.3

DRILLING & MILLING

Max. drilling capacity

φ15mm

φ15mm

Worktable size (L*W)

200×150mm²

200×150mm²

Max. end mill capacity

φ20mm

φ20mm

Max. face capacity

φ63mm

φ63mm

Spindle travel

85mm

85mm

Headstock travel of up and down

HQ400/180mm

HQ400/1V80mm

Spindle taper

M.T.3

M.T.3

Step of spindle speed

6



Range of spindle speed

375-1600r.p.m

0-660 r.p.m,660-2030 r.p.m

Swivel angle of headstock

±360°

±360°

MOTOR

Motor power

0.55Kw

1.1Kw

Voltage/Frequency

As customers requirement

As customers requirement

SHIPMENT DATA

Packing size

1030×580×1070mm

1030×580×1070mm

N. weight/G. weight

155kg/185kg

155kg/185kg

Loading amount

44pcs/20container

44pcs/20container

Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.
