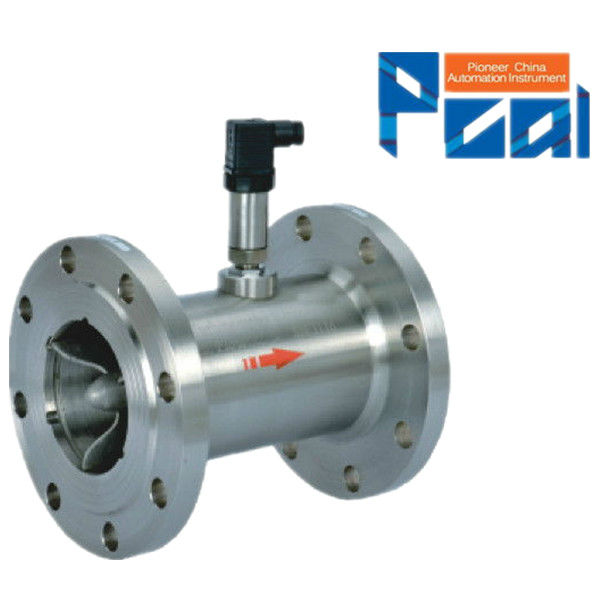

• LWGY Liquid turbine flow meter

LWGY Liquid turbine flow meter

urbine flow meter
For Liquid (Water, Diesel, Gasoline)
High Accuracy: 1.0% or 0.5% or rate
DN4 to DN200

Product Details

Quick Details

Description

LWGY Liquid turbine flow meter SPECIFICATIONS
Performance
Repeatability:±0.2%
Accuracy:Standard: ±1% of reading;Optional: ±0.5% of reading


Wetted Components
Housing:Standard - 304 Stainless Steel Optional - 316 Stainless Steel
Bearings and Shaft:Tungsten Carbide
Rotor:Standard - 2Cr13 Stainless Steel
(Optional Alloy CD4Mcu)
Retaining Rings:316 Stainless Steel
Output Signal: (Where applicable)
Sensor:Pulse signal (Low Level: ≤0.8V; High Level: ≥8V)
Transmitter: 4 to 20 mA DC current signal Signal Transmission Distance: ≤1,000 m
Electrical Connections:Basic Type:Hausman Connector or three-core cable
Explosion Proof Type:ISO M20×1.5 Female


Explosion Proof Level:
Standard:None
Optional:ExdIIBT6
Protection Level:IP65


 OPERATION CONDITIONS
Ambient:
Temperature:-10°C to +55°C
Pressure:86 to 106 KPa
Relative Humidity:5% to 90%
Power Supply:
Sensor:+12V DC (Optional: +24V DC)
Transmitter:+24V DC
Field Display Type B:
Integral 3.2V Lithium Battery (Others available on request)
Field Display Type C:
+24V DC
Fluid Temperature and Pressure:
Temperature:
-20°C to +110°C
Pressure:
Fluid pressure should be limited according to rating.



Datasheet for optional :















Description

Type

A









Flow sensor pulse output three-wire system, +12V power supply;

B









Local display, powered by 3.6V battery;

C









Local display with 4~20mA or pulse output, powered by 24V;

D









Flow transmitter 4~20mA output, powered by ,24V;

Nominal drift diameter

4







Normal flow range

m3/h

0.04~0.25

Extended flow range

m3/h

0.04~0.4

6







0.1~0.6

0.06~0.6

10







0.2~1.2

0.15~1.5

15







0.6~6

0.4~8

20







0.8~8

0.45~9

25







1~10

0.5~10

32







1.5~15

0.75~15

40







2~20

1~20

50







4~40

2~40

65







7~70

3.5~70

80







10~100

5~100

100







20~200

10~200

125







25~250

12.5~250

150







30~300

15~300

200







80~800

40~800

Explosion protection







Not marked, without explosion protection

B





Explosion protection type

Precision class

A



Precision: Class 0.5

B



Precision: Class 1.0

Turbine type

A

Normal flow range

B

Extended flow range

Note:

Sensors with pipe diameter of DN4~DN40 are of thread connections with maximum operating pressure of 6.3Mpa.

Sensors with pipe diameter of DN50~DN200 are of flange connections with maximum operating pressure of 2.5Mpa.

Sensors with pipe diameter of DN4~DN10 are provided with front and rear straight pipe sections and filters.

Please specify when placing an order if flange connections are required for pipe diameter of DN15~DN40.

Please specify when placing an order for high pressure type and special requirements.
