Type : LKF0503DZ-LPG
Gas dispenser : Single
Hydrocarbon pump : Canned motor pump
Tank volume : 5m3
Sides : Left
XHBB128B automatic ratio tester is a special instrument for measuring transformer category; unique angle test function plays an important role in Z type transformer testing, plays an important role in winding connection transformer factory for; the instrument is an ideal test instrument of power industry departments and transformermanufacturing plant.
The implementation of the standard DL/T 963-2005 "the transformation ratio testing instrument general technical conditions"
The main performance characteristics
Using single / three-phase two power output, with test transformer tap function;
Capable of single-phase and three-phase transformer measurement of the ratio and the group (or polar);
Z type transformer capable of measuring arbitrary angle transformation ratio andangle (do not need to enter the angle value);
The test data. The permanent storage of the 10 transformers, each data tap numberup to 40;
* with large screen LCD, full Chinese characters menu prompt operation, micro printer output or USB storage;
The main technical indicators
* ratio measuring range: 0.9 - 5000
* ratio measuring accuracy: 0.1 stage (0.9 - 1000) level 0.2 (10005000)
Some groups: from 1 to 12, measurement of angle measurement: + 0.2%+0.2 degree
To test the voltage: single-phase 200/100V automatic switching; three-phase line voltage 60V
To the environment temperature: - to 50 DEG C, the humidity of the environment: less than 85%RH
To the working power supply: AC 220V + 10% to the power frequency: 50Hz + 1Hz
LUKE Auto Gas Development Co., Ltd is a Sino-Austria joint venture, founded by Sinopec Qingdao Petrochemical Company and Gas Auto International of Austria in 1997.
Today Luke is one of the leading companies in China for compressors, dispensers, storage tanks and other required accessories, including complete turn-key CNG, LNG, L-CNG refueling stations. We could establish excellent relationship with Sinopec, Petro China, CNOOC, and other regional companies.
We have taken science and technology awards and received a special fund from MSTC (ministry of science and technology, the People Republic of China), of pioneering our unique hydraulic CNG compressor. The engineering of the valve housing with vacuum insulation used in LNG for process pipelines has applied the national patent.
Luke has experience of two decades in the production of compressors and offers its customers the benefits of the latest development in design, engineering, proven manufacturing methods, testing under full load, all from a single source. We are able to offer not only the hardware, but also well-founded advice on design, project development and construction of CNG, LPG, LNG and L-CNG refueling stations.

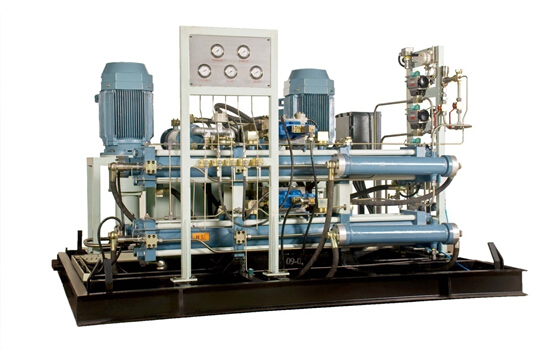

The well engineered modular CNG compressors and component systems are developed and manufactured according to state of the art technology and in compliance with the national and international standard (ISO 9001) and regulations.
To date LUKE has supplied over 200 stations for CNG, LPG, LNG and L-CNG refueling stations all over China.
