Juice Filling Machine

Specifications Prof. juice filling machine. 1.Fully automatic/high configuration 2.PLC control/food grade SS 3.factory price,good quality zhangmimin122@126.com

Product Details

Quick Details

Description

BW-2200B type machine is fully automatic with top configuration. The entire machine is made of food-grade stainless steel. The surface is special processed, so the appearance is beautiful.



1.  Work flow :



Put cardboard into carton holder (manually) → Bottom preforming → Bottom heating and sealing → Ultrasonic capping (Optional)→Filling → Top preforming → Top heating and sealing → Date printing → Finished product



The whole process is controlled by PLC, and only need one person to operate.



2.  Suitable for filling:



Juice, fruit vinegar beverage, dairy product, corn beverage, tea beverage, etc



3.  Technical parameter:



Capacity

200-1000ml

Output

2000-2500 cartons/h

Packing material

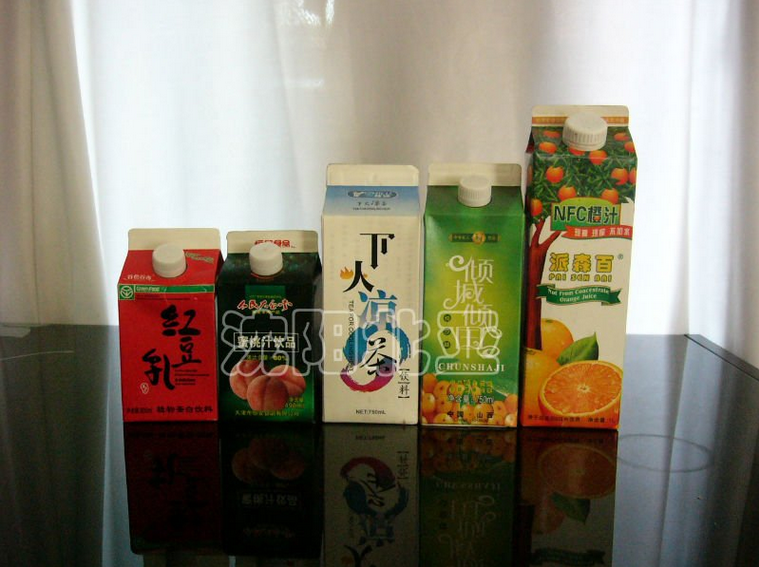

cardboard carton / aluminium foil carton

Shelf life

3 to 12 months

Capping

With capping (Optional)

Filling temperature

cold filling: 2-50°C / hot filling: 80-94 °C

Overall power

25KW (three phases of power electricity)

Compressed air

Pressure: 1.0-1.4 Mpa

Flow rate: 1.4-2M3/min

Cooling water

Flow volume: ≥40L/ min

Temperature: ≤30°C

Size: (L*W*H)

3.7m*1.6m*2.8m

Net Weight

3500kg

Installation requirement

Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not

need to make angle.



4.  Function:



1.  PLC control, only need one worker.

2.  Apply Touch screen which shows the relevant information for operator, and makes the operation easy.

3.  Automatically record the working status, and can be long-term saved.

4.  Automatic lubrication.

5.  Automatically failure alarm, diagnosing, and solution indicating.

6.  The filling capacity can be adjusted at will.

7.  The capping function is optional.

8.  Can be installed with remote debugging system, which can solve problems for long distance customers.

 9. CIP cleaning.



Company Profile

Shenyang Beiya Beverage Machinery Company is the earliest to research and design gable top carton filling machine in domestic market. It is a high technology company combining production and R&D as an integrated construction. Through introducing foreign advanced technology and independent R&D, Beiya designed and produced the first set of gable top carton filling machine, breakthrough the situation that this kind of filling machine monopolized by foreign products. Proved by application practice of internal over 258 customers, this filling machine’s function and quality have reached, even surpassed similar products in foreign countries, with a price one third of foreign equipments. At its excellent function and price effectiveness, it is extensively welcomed by internal and external customers.



Beiya company is located in Shenyang, which is a famous machinery equipment manufacturing base in China. High level R&D research team, high performance machinery processing equipments, high quality production worker team, all of which maintain Beiya products’ technology and quality level at a high starting point and in a high standard. The major products of Beiya are gable top carton filling machine series, which is mainly applied in diary food, beverage, condiment, liquor and cream such industries.



Beiya, at the believe of “sincerity bringing out trust and trust bringing out the future”, is willing to serve the customers and reward the society with the best quality products and the best service.
