  • JZM Portable Concrete Mixer

JZM Portable Concrete Mixer

JZM Portable Concrete Mixers are also called double-conic self reversing concrete drum mixers. They are portable cement mixers in work site. During work, portable cement mixers mix when the drum is in the positive rotation and discharge in reversal revolution.

Product Details

Quick Details

Description

Model

JZM350

JZM500

JZM750

Discharge capacity

350L

500L

750L

Charge capacity

560L

800L

1200L

Productivity

10-14m3/h

18-25m3/h

25-37m3/h

Max.Aggregate size

60mm

70mm

80mm

Mixing Motor Power

5.5kw

7.5kw

11kw

Lifting Motor Power

4.5kw

5.5kw

7.5kw

Pump Power

0.55kw

0.75kw

0.75kw

Drum rotating speed

14r/min

13r/min

12.26r/min

Weight

2000kg

3100kg

4200kg

Dimensions(L*W*H)

2766*2140*3000

5230*2300*5450

5650*2065*3535


Definition of JZM Portable Concrete Mixer
JZM Portable Concrete Mixers are also called double-conic self reversing concrete drum mixers. They are portable cement mixers in work site. During work, portable cement mixers mix when the drum is in the positive rotation and discharge in reversal revolution.

Characteristics of JZM Portable Concrete Mixer
Drums of JZM small concrete mixers are driven by rubber roller friction. Portable cement mixers have such special characteristics as reasonable structure, convenient to remove, quick moving from site to site, labor-saving, etc.. JZM portable concrete mixers are cheap concrete mixers.

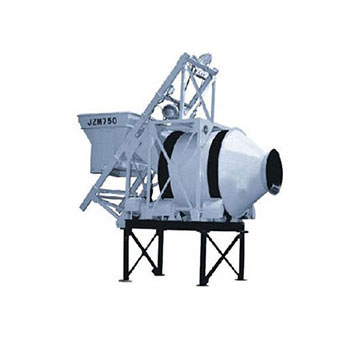

JZM Portable Concrete Mixer

Usages of JZM Portable Concrete Mixer
JZM portable concrete mixers are suitable to mix dry rigid, semi-rigid, plastic and various ratio of concrete and portable small concrete mixers can meet different requirements of working conditions. JZM small concrete mixers can be used home and are small household mixers. They can not only be used on ordinary construction sites, small scale road building, but also can be used in roads and bridges projects, concrete prefabricated parts factories, etc..

Pioneer Machinery Company provides personalized and customized products with good quality and reasonable price. Warranty period of JZM portable concrete mixers is one year. The production ability of cheap small concrete mixers is 3000 sets every year.
