  • JZM Mini Concrete Mixer

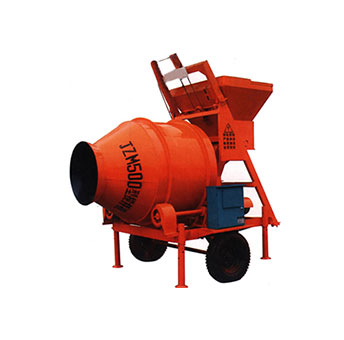

JZM Mini Concrete Mixer

JZM mini Concrete Mixer is a building machine which mixes aggregate, powder, cement, water and additive in the drum. Mini cement mixer is double-conic self-reversing drum mixer. " M " stands for friction.

Product Details

Quick Details

Description

Model

JZM350

JZM500

JZM750

Discharge capacity

350L

500L

750L

Charge capacity

560L

800L

1200L

Productivity

10-14m3/h

18-25m3/h

25-37m3/h

Max.Aggregate size

60mm

70mm

80mm

Mixing Motor Power

5.5kw

7.5kw

11kw

Lifting Motor Power

4.5kw

5.5kw

7.5kw

Pump Power

0.55kw

0.75kw

0.75kw

Drum rotating speed

14r/min

13r/min

12.26r/min

Weight

2000kg

3100kg

4200kg

Dimensions(L*W*H)

2766*2140*3000

5230*2300*5450

5650*2065*3535


Definition of JZM Mini Concrete Mixer
JZM mini Concrete Mixer is a building machine which mixes aggregate, powder, cement, water and additive in the drum. Mini cement mixer is double-conic self-reversing drum mixer. " M " stands for friction. The drum of mini cement mixer is driven by friction wheel. The drum rotates clockwise during mixing and anticlockwise during discharging.

Features of JZM Mini Concrete Mixer
The mixing drum of mini mixer machine has a low line speed and a good wear resistance and low energy consumption. Under the stirring, the material forms a cross concrete stream.

JZM mini concrete mixer can mix plasticity and damp half-dry concrete. JZM mixer machine adopts rubber wheel friction drive, so it has such advantages as low noise, smooth operation, convenient moving and high production efficiency.

JZM Mini Concrete Mixer

Usages of JZM Mini Concrete Mixer
JZM mixer machine is small, so it can be used home and small construction sites. In addition, mini cement mixer is usually used on industrial and civil construction sites, roads, bridges, etc.. JZM mixer machine can work alone.

Keep JZM mini concrete mixer and automatic feeder clean, especially in winter, to prolong the life of mini cement mixer.

Pioneer Machinery Company is a concrete mixing factory, we design and supply mini cement mixer with fabulous mixing quality. Our products have received good feedback from overseas clients.

Company Profile

Located in the Construction Machinery Town of Zhengzhou, China, Zhengzhou Pioneer Machinery Co., ltd is an up-rising star in the building mixing machinery field. We have abundant experience and great share in the market. Our main products include concrete mixers, concrete mixing plants, mobile concrete batching plants, concrete truck mixers, etc. Dedicated in top-class products with competitive price, our products are widely welcomed and exported by domestic and foreign groups in the fields of construction, power, water, highway, railway, bridge erecting, and so on.
Over these years, our company strictly adhered to "honest", "keep promise" and "best quality, as our corporate philosophy, which has earned excellent reputation and public praise all over the world.
In our corporate culture, customers` requirement is a yardstick to measure our job performance, and it is the foundation for company`s survival. Also, the quality of products & services is a lifeline for our company`s development and growth. At the same time, we offer good service to the customer to get the new and old customer trust and support and develop each other.
As a professional exporter, our target is to serve worldwide clients with high- quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects, and at 24-hours online services.
We sincerely welcome friends from all walks of life to visit our company and create a glorious tomorrow hand in hand.
