  • JZK Double stage Vacuum extruder

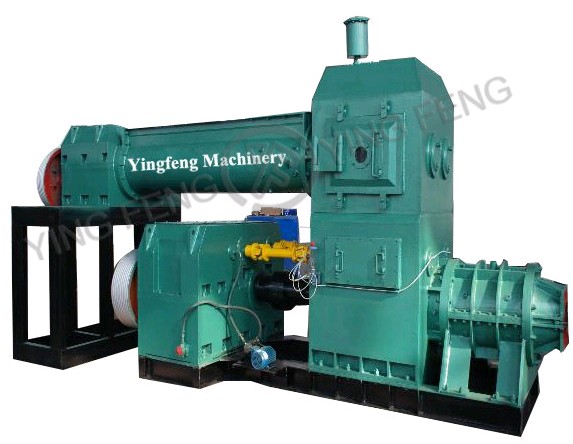

JZK Double stage Vacuum extruder

The JZK JZK Double stage Vacuum extruder series are our advanced twin-stage vacuum extruders which draw advanced experience from the developed.and domestic technology .

Product Details

Quick Details

Description

Type

Unit

JZK60/60-4.0

JZK55/55-4.0

JZK50/50-3.5

JZK45/45-3.5

JZK40/40-3.0

JZK35/31-2.5

Capacity

pcs/hr

18000-20000

16000-18000

13000-16000

11000-13000

9000-11000

7000-9000

Reamer diameter

mm

600

550

500

450

400

350

Extruding  pressure

mpa

4.0

4.0

3.5

3.5

3.0

2.5

Dimension

m

7.5X3.3X2.6

6.8X1.9X2.5

6.5X1.8X2.5

6.1X1.6X2.3

5.6X1.4X2.2

5.0X1.6X2.1

Weight

t

19.5

15.4

14.6

12.1

8.9

7.0

Power

Kw

75/180

75/160

75/132

45/110

45/90

30/75


The JZK JZK Double stage Vacuum extruder series are our advanced twin-stage vacuum extruders which draw advanced experience from the developed.and domestic technology .They are mainly made of high quality steel with features of reasonable structure, sturdy and durability. They also have such advantages ,like ,strong applicability, high efficiency, easy maintenance but lower energy consumption. The machine’s axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life. The dialing mud plate’s transfer and material level control are fixed with protecting device which improves the plant efficiency of breakdown maintenance. And it also makes sure that it cann’t easily damage the main spare parts during usage. The reamer adopts the floating shaft structure which can eliminate and reduce the machine’s shacking and rocking times because of curving in principal axle after long time usage. The blade of the reamer adopts the wear-resistant metallic material coating technology which make its life four times to seven times longer than the common reamer. The lead has the function of light pressure delivery and high pressure extrusion which makes the machine save energy from fifteen percent to thirty percent. They are applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.

JZK Double stage Vacuum extruder

Company Profile

Our company Zhengzhou Yingfeng Machinery Co.,Ltd. located in Zhengzhou City, the capital of Henan Province.Our city is also the original place of brick making machine in China.
We are a high-tech enterprise, integrating science, industry and trade for brick and tile machinery with our brand more than 30 varieties and over 100 specifications. Now we have built more than 2000 brick production line in China and we also have sold auto clay brick machine to more than 24 countries, like India, Bangladesh ,Indonesia, Myanmar,Kazakhstan, Uzbekistan, Russia,Turkmenistan, Mongolia, Nepal, Sudan, South Africa, Uganda, Mozambique,Tanzania,Ghana, Zimbabwe,Congo,Peru, Colombia,Brazil ,Bolivia Mexico,etc. and have won great fame and popularity .

Our company covers an area of 82,200 square meters, with 400 staffs, including medium and high-level professionals 68 staffs.Yingfeng company mainly engages in brick machinery products with more than 25 years.
