  • JZD Diesel Concrete Mixer

JZD Diesel Concrete Mixer

JZD Diesel Concrete Mixer is diesel engine powered, double-conic reversing drum concrete machinery. The mixing drum of diesel cement mixer is gear-driven. Diesel concrete mixer is also a reversal discharging mobile diesel cement mixer.

Product Details

Quick Details

Description

Model

JZD300

JZD350

               JZD500

Charging capacity

510L

560L

800L

Discharging capacity

300L

350L

750L

Productivity

8-12m3/h

14-18m3/min

18-22m3/h

Motor power

Water-cooled diesel engine 10-15HP

Water-cooled diesel engine 10-15HP

Water-cooled diesel engine 18 HP

Mixing power

15HP

15HP

18HP

Rotation speed of
the drum

14rpm

14rpm

             14rpm

Working cycle period

14rpm

14rpm

  14rpm

Maximum aggregate size

60mm

60mm

  60mm

Lift time of feeding

About 7 seconds

About 7 seconds

About 7 seconds

Max. speed of driving

10-15km/h

10-15km/h

      10-15 (km/h)


Definition of JZD Diesel Concrete Mixer
JZD Diesel Concrete Mixer is diesel engine powered, double-conic reversing drum concrete machinery. The mixing drum of diesel cement mixer is gear-driven. Diesel concrete mixer is also a reversal discharging mobile diesel cement mixer. The drum rotates clockwise during diesel concrete mixer mixing and anticlockwise during discharging.

Features of JZD Diesel Concrete Mixer
JZD diesel concrete mixer can mix semi-rigid and plastic concrete. Diesel cement mixer is characterized by balance running, simple operation and high efficiency. JZD diesel cement mixer has no stirring shaft and it belongs to self-falling concrete mixer. The aggregate is moving with barrel. When the aggregate goes to the highest point, it will freely fall, so the effect of mixing is good. Diesel concrete mixer goes recycle mixing. JZD diesel cement mixer uses electric switch type discharge, avoid remaining raw material. The discharging of concrete machinery is quick and clean. It is easy to maintain JZD diesel concrete mixer.

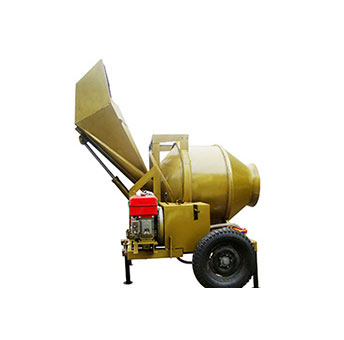

Diesel Concrete Mixer

Usages of JZD Diesel Concrete Mixer
It is very convenient to operate in places where short of electricity.JZD diesel concrete mixer is suitable for ordinary construction sites, road and bridge projects and concrete prefabricated parts factories. When fixed mixing, users can dig pit, so that the hopper mouth is at the same level of the ground to make feeding convenient and reduce labor intensity.

The engine of JZD diesel cement mixer has homebred and imported type, we supply it according to requirement of customers.

Here is diesel concrete mixer China, Pioneer Machinery Company supplies diesel cement mixer with good quality and reasonable price.
