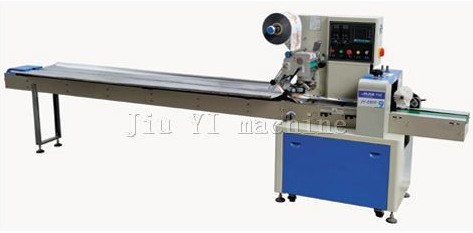

• JY-280F JY-320F pillow packing machine

JY-280F JY-320F pillow packing machine

different from traditional paper feeding, downside paper feeding is used, especially suitable for packing on viscous and loose products such as preserved fruit, haw chip, sausage. wangxun124@163.com

Product Details

Quick Details

Description

Main perfomance & Structure Characteristics
different from traditional paper feeding, downside paper feeding is used, especially suitable for packing on viscous and loose products such as preserved fruit, haw chip, sausage. On the whole machine, frequency conversion speed regulation is used, paper length regulation is accurate, saving time, work and films. Optical tracking is accurate and quick, with  paper and film centers antomatic locating, easy to operate and simple to maintain.
Applicable
Suitable for packing on viscous and loose products such as preserved fruit, haw chip, sausage.
Technical parameter
Packing speed (bag/minute)
     30-200
Packing size (mm)
          L60-280 W20-100 H5-40
Maximum width of film (mm)
     280
Thickness of film (mm)
       >0.020
Total power
            2.5KW
Rated voltage
            220V
Rated frequency
          50HZ
Weight of the machine
        500KG
Overall size (mm)          3500*670*1520

Company Profile

JIUYI Machinery Co., Ltd. is located in Yantai Road,Yongqiang Avenue,ETDZ Wenzhou China,Specializing in R&D, design, manufacturing,sales and after-sales services.Our company has developed a variety of different types machines,widely used for food, drinks,paper,metal appliances,and household industries. Especially for the automatic packaging machine,sealing machine,filling machine,ice cream machine and bakery equipment.We have applied for many national patents and most have Passed CE certificate,Products well selling in domestic and overseas market,Like:Europe,North America,South America, Central Asia, southeast Asia, Africa etc.
USING HIGH TECH BENEFIT FOR CUSTOMERS is our approach.FAST AND THOUGHTFUL AFTER SALES SERVICE is our principle.we do think what our customers think and we do care what our customers care,give the utmost care and attention for each process of customer consumption.we will continue to improve ourselves,to create our own brand by excellent quality and sincerely service,Let us together towards a more WIN WIN situation.
