  • JS Series Electric Concrete Mixer

JS Series Electric Concrete Mixer

JS series Electric Concrete Mixer is Two-shaft forced concrete mixer. Nowadays, JS electric concrete mixer is advanced and ideal construction equipment at all around the world.

Product Details

Quick Details

Description

Model

JS500

JS750

JS1000

JS1500

JS2000

Discharge capacity

500L

750L

1000L

1500L

2000L

Charging capacity

800L

1200L

1600L

2400L

3200L

Productivity

25m3/h

35m3/h

50m3/h

75m3/h

100m3/h

Aggregate size

60/80mm

60/80mm

60/80mm

60/80mm

60/80mm

Mixing motor power

18.5kw

30kw

37kw

60kw

2*37kw

Lifting motor power

5.5kw

7.5kw

11kw

18.5kw

2*37kw

Pump motor power

0.75kw

1.1kw

1.1kw

1.1kw

2*37kw

Dimensions

3050*2100*2680

3650*2200*2560

4640*2250*2750

5058*2250*2440

5000*2000*2600


Definition of JS Electric Concrete Mixer
JS series Electric Concrete Mixer is Two-shaft forced concrete mixer. Nowadays, JS electric concrete mixer is advanced and ideal construction equipment at all around the world.

Features of JS  Electric Concrete Mixer
Electric concrete mixers have such advantages:high degree of automation, high efficiency, low energy consumption, low noise, convenient operation, fast unloading, long service life of blades and scaleboard, convenient repair and maintenance. Electric concrete mixer is suitable to mix plastic concrete, light aggregate concrete and mortars. Electric concrete mixer uses motorized discharging, and supports the use of various dump trucks. Electric concrete mixer is an ideal tool on construction site.

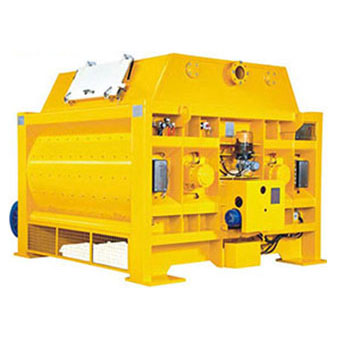

JS Series Concrete Mixer

Details of JS Electric Concrete Mixer
1.Air Purge Multi Seals at shaft ends
Concealed recesses at shaft and metal seal of electric concrete mixer to stop mortar.Air purge at shaft is to pressurize the sealing chamber and keep the slurry out.
2.Reducer of electric concrete mixer
Reducer and oil sealing system of electric concrete mixer runs at slow noise and temperature.
3.Discharge door of electric concrete mixer
Electric concrete mixer has advanced hydraulic door opening system to ensure smooth operation.
Electric concrete mixer can adjust stopping positions to regulate the discharge flow, which is convenient for feeding to the truck mixer.
4.Unique Monitoring System of electric concrete mixer
Monitor oil level and temperature at gear reducer.
Monitor oil level and temperature at hydraulic door opening.
