  • JS Cement Mixer

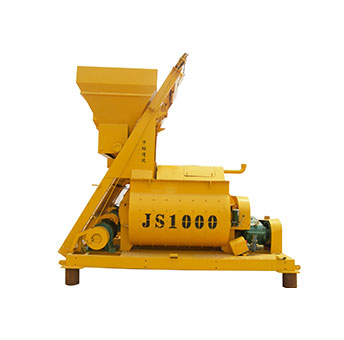

JS Cement Mixer

JS Cement Mixer is double axle compulsory concrete cement mixer, also be called JS concrete mixer. JS cement mixer is made up of mixing cylinder, mixing device, transmission, hydraulic pump station, automatic lubricating device, belt cover and so on.

Product Details

Quick Details

Description

Model

JS500

JS750

JS1000

JS1500

JS2000

Discharge capacity

500L

750L

1000L

1500L

2000L

Charging capacity

800L

1200L

1600L

2400L

3200L

Productivity

25m3/h

35m3/h

50m3/h

75m3/h

100m3/h

Aggregate size

60/80mm

60/80mm

60/80mm

60/80mm

60/80mm

Mixing motor power

18.5kw

30kw

37kw

60kw

2*37kw

Lifting motor power

5.5kw

7.5kw

11kw

18.5kw

2*37kw

Pump motor power

0.75kw

1.1kw

1.1kw

1.1kw

2*37kw

Dimensions

3050*2100*2680

3650*2200*2560

4640*2250*2750

5058*2250*2440

5500*2000*2600


Definition of JS Cement Mixer
JS Cement Mixer is double axle compulsory concrete cement mixer, also be called JS concrete mixer. JS cement mixer is made up of mixing cylinder, mixing device, transmission, hydraulic pump station, automatic lubricating device, belt cover and so on. JS cement mixer can work independently, and it also can form a variety of mixing station with PLD series of batching plants.

Characteristics of JS Cement Mixer
JS cement mixer is equipped with multiple shaft end sealing protection device and wind pressure sealing protection device to effectively avoid leakage.
JS cement mixer has unique monitoring system, which can monitor working conditions of reduction box, discharging pump and electrical lubricating pump.
JS cement mixer has four separate pump core, which respectively feeds oil to four axial heads directly without using by-pass valve.
They can mix dry hard concrete, elastic concrete, flow concrete, light weight aggregate concrete and various mortars.

JS Cement Mixer

Usages of JS Cement Mixer
This cement equipment has high efficiency and used very widely. For example, JS cement mixer can be used in all kinds of precast plant, highways, bridges, civil constructions, water conservancy, harbors and so on.

JS cement mix have good after-sale service: spare parts will be delivered as request and our engineers will go to site for guiding the installation and test-running as request. JS cement mixers have 12 months warranty period since installation and commissioning.

Company Profile

Located in the Construction Machinery Town of Zhengzhou, China, Zhengzhou Pioneer Machinery Co., ltd is an up-rising star in the building mixing machinery field. We have abundant experience and great share in the market. Our main products include concrete mixers, concrete mixing plants, mobile concrete batching plants, concrete truck mixers, etc. Dedicated in top-class products with competitive price, our products are widely welcomed and exported by domestic and foreign groups in the fields of construction, power, water, highway, railway, bridge erecting, and so on.
Over these years, our company strictly adhered to "honest", "keep promise" and "best quality, as our corporate philosophy, which has earned excellent reputation and public praise all over the world.
In our corporate culture, customers` requirement is a yardstick to measure our job performance, and it is the foundation for company`s survival. Also, the quality of products & services is a lifeline for our company`s development and growth. At the same time, we offer good service to the customer to get the new and old customer trust and support and develop each other.
As a professional exporter, our target is to serve worldwide clients with high- quality products, great reliability, devoted responsibility, professional services and honorable credibility to meet customers' requirements in all aspects, and at 24-hours online services.
We sincerely welcome friends from all walks of life to visit our company and create a glorious tomorrow hand in hand.
